Mirror Replacement - Power Mirror

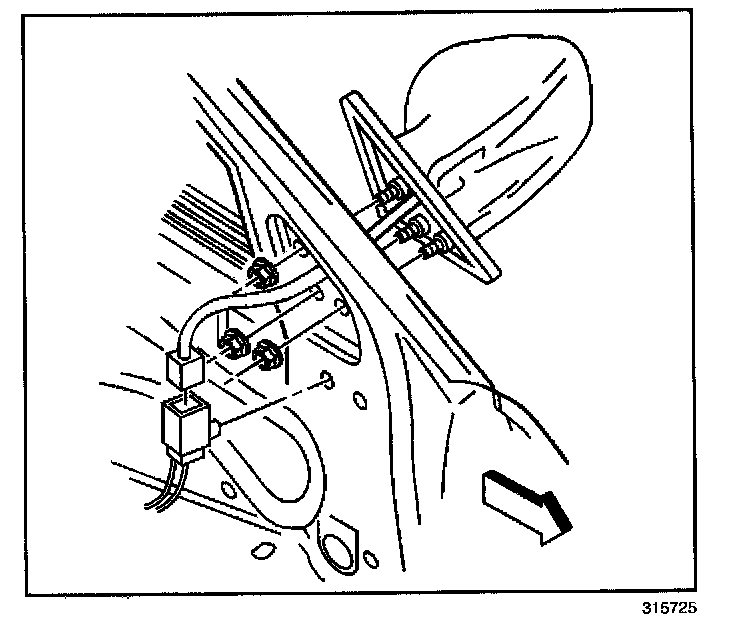

REMOVAL PROCEDURE




1. Remove the trim panel.
2. Disconnect the electrical connectors.
3. Remove the mirror reinforcement cover.
4. Remove the nuts from the mirror.
5. Remove the mirror.

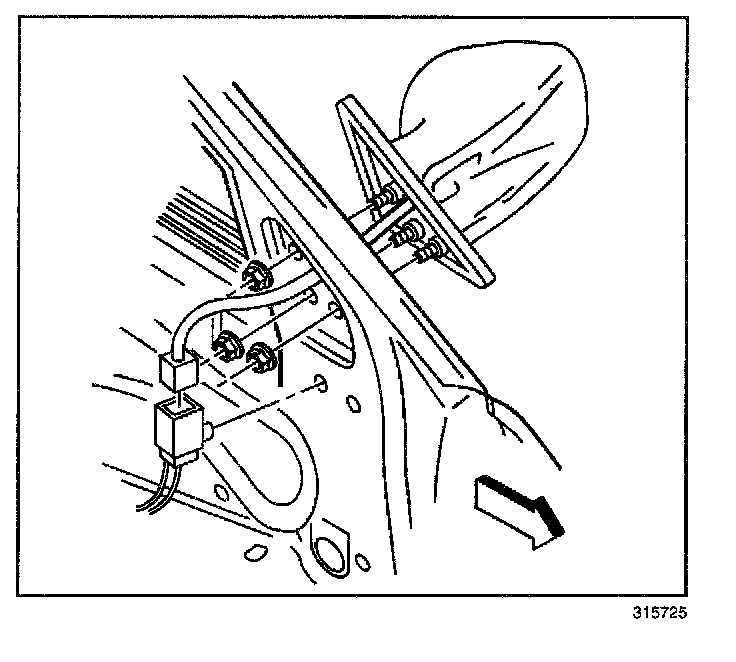

INSTALLATION PROCEDURE




1. Position the mirror to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the nuts. Start at the lower left nut. Tighten in a clockwise direction. Start at the lower left nut. Tighten in a clockwise direction.

Tighten
Tighten the outside mirror nuts to 10 N.m (89 lb in).

3. Install the mirror reinforcement cover.
4. Connect the electrical connectors.
5. Install the trim panel.
