Air Door Actuator / Motor, HVAC
>>

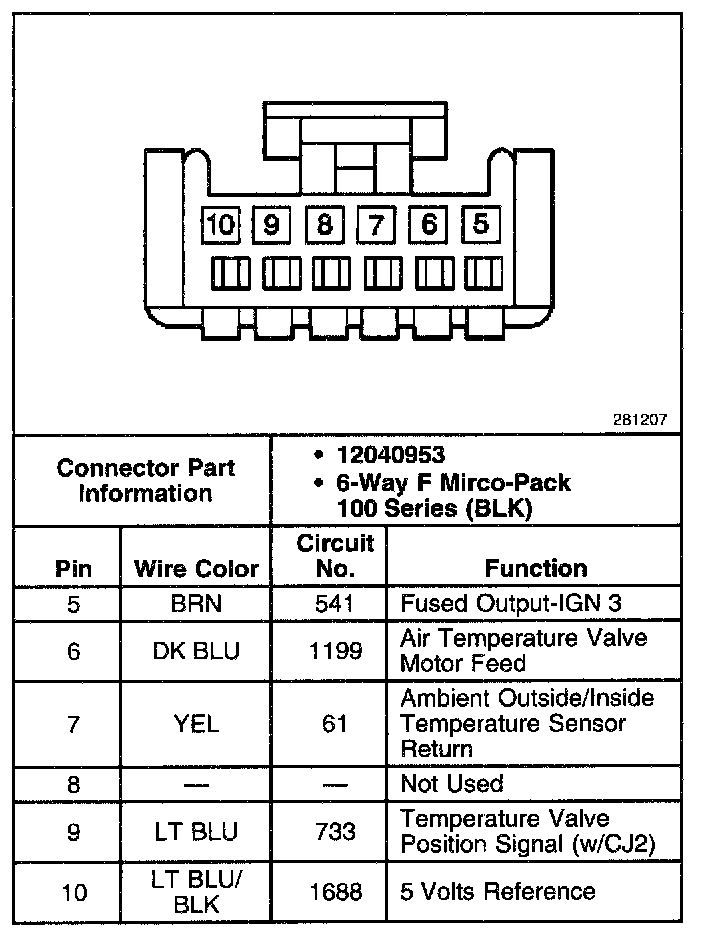

Electric Actuator, Left Side
Electric Actuator, Left Side
Electric Actuator, Left Side:
