Shift Solenoid, A/T

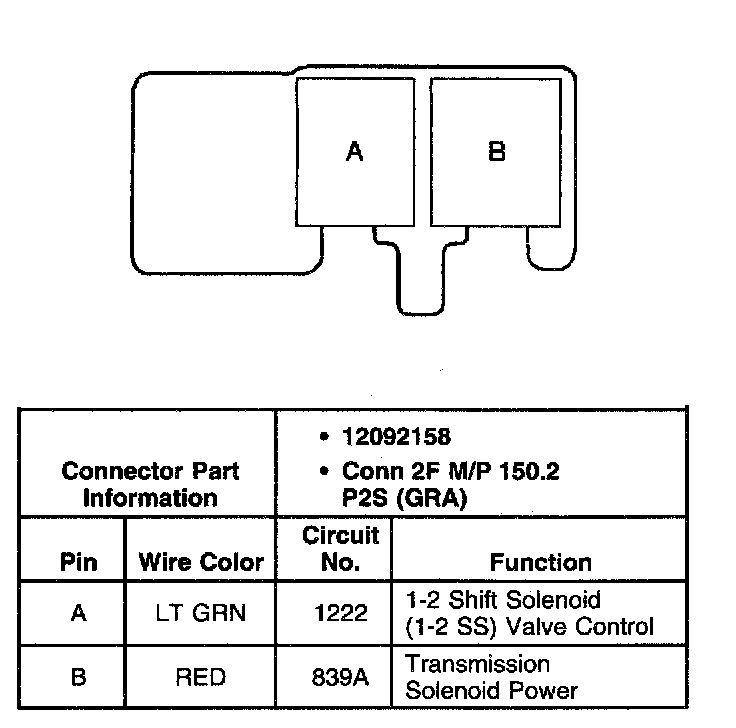

1-2 SHIFT SOLENOID VALVE CONNECTOR, WIRING HARNESS SIDE

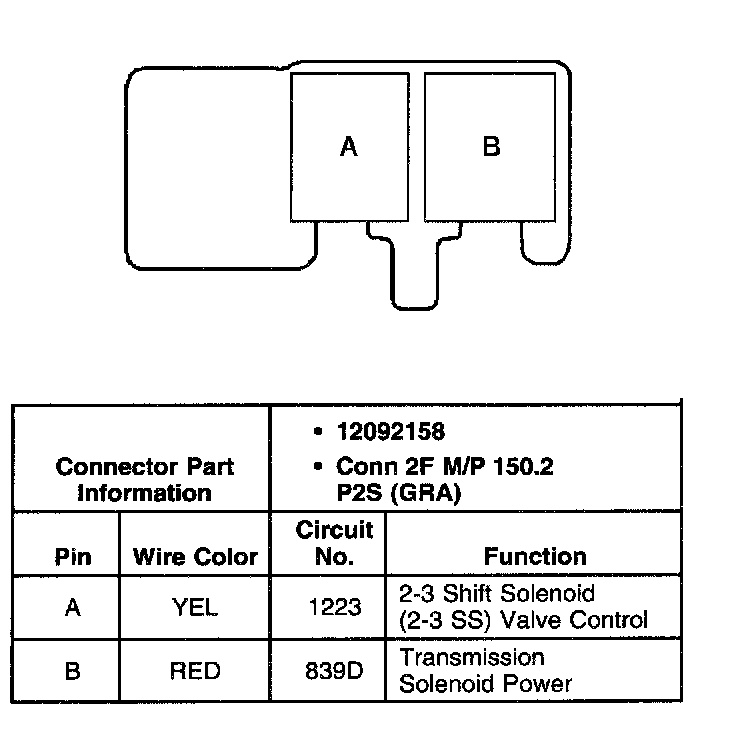

2-3 SHIFT SOLENOID VALVE CONNECTOR, WIRING HARNESS SIDE
