Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1999
>>
Grand Prix V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C101
C101

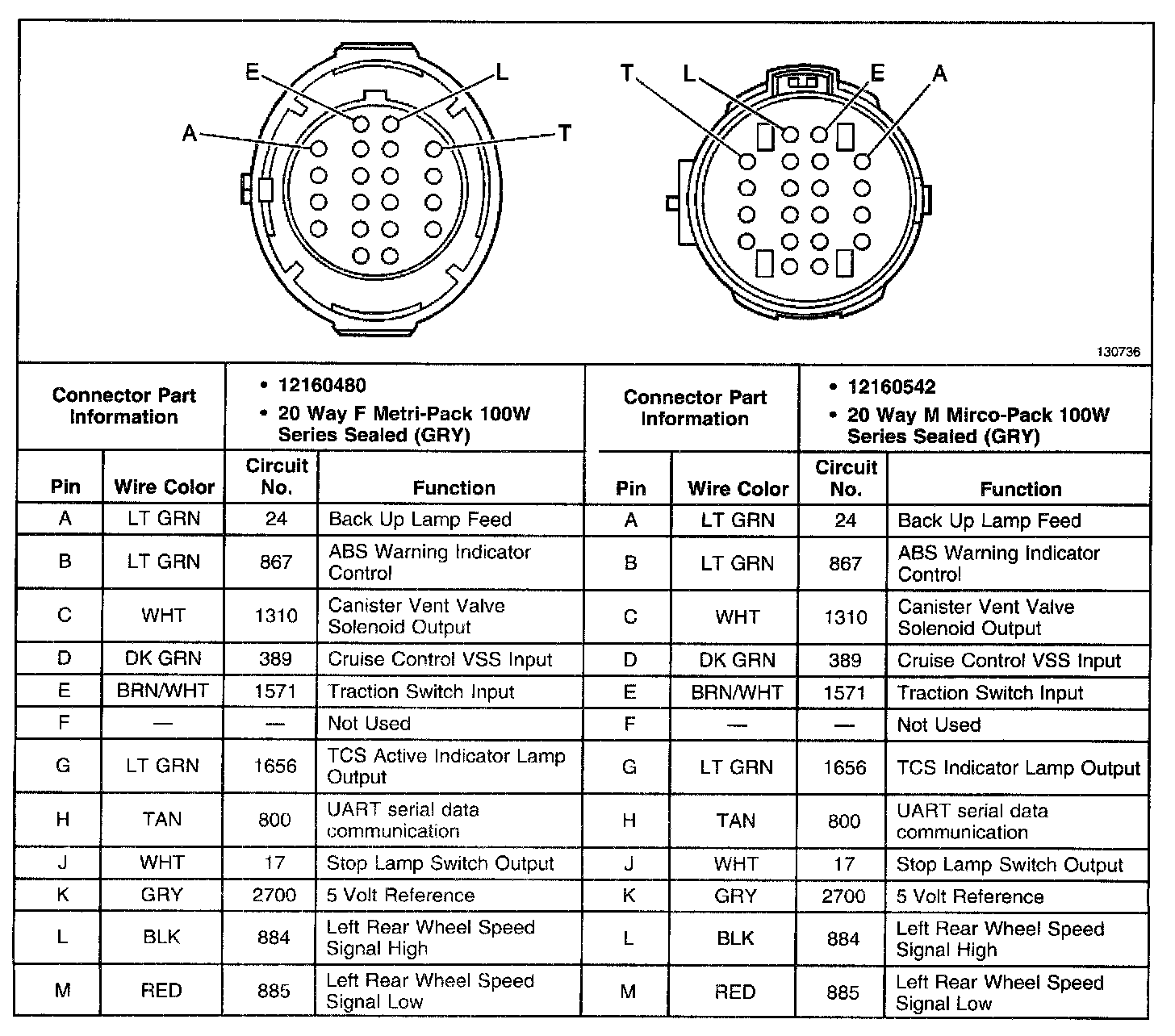

In-Line Connector C101 (Part 1 Of 2):

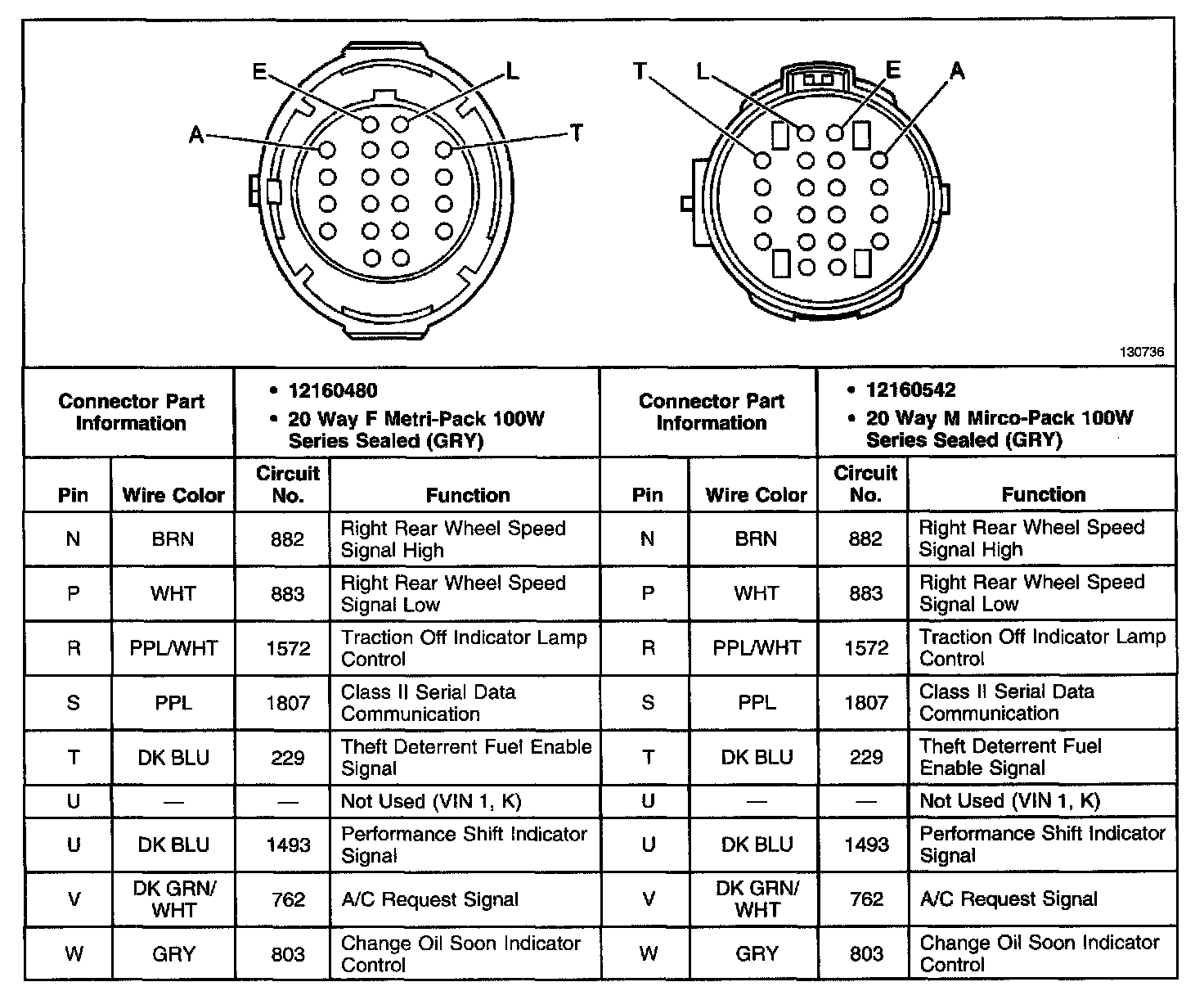

In-Line Connector C101 (Part 2 Of 2):
