Data Link Connector (DLC)
Data Link Connector (DLC)

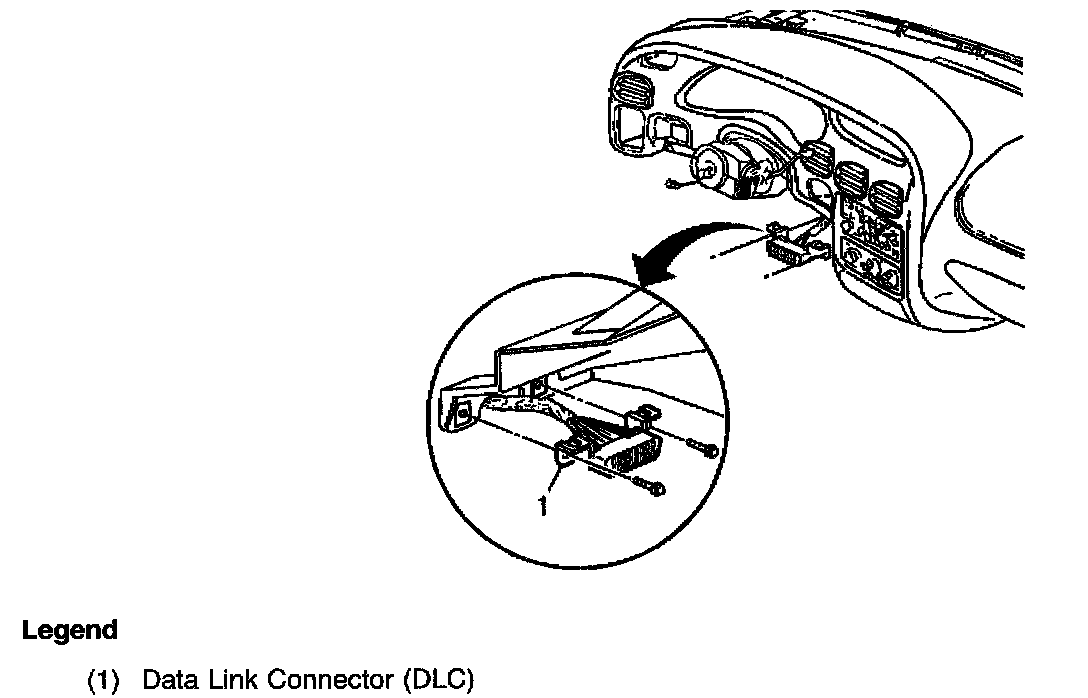

Below LH Side Of I/P:

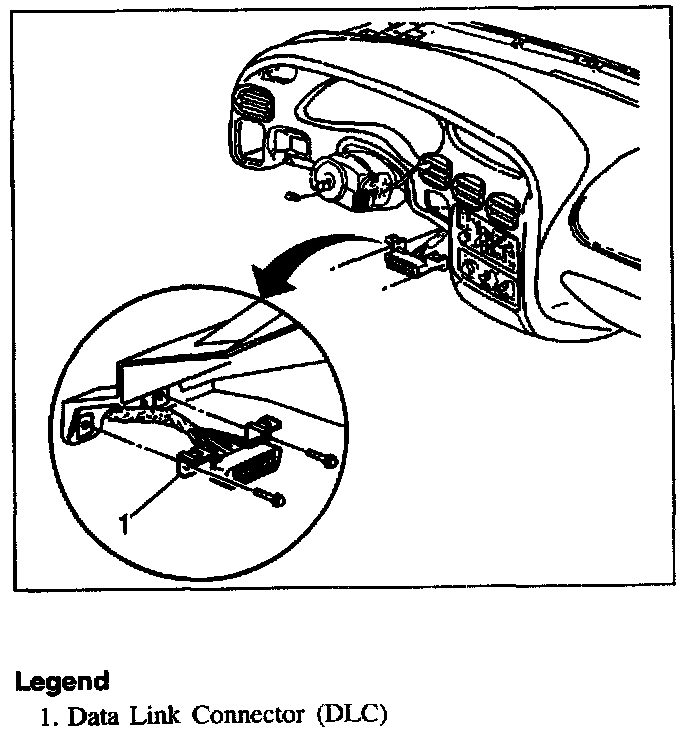

Below Left Side Of Instrument Panel:
On the bottom of the IP, right of the steering column
