Pontiac
>>
1999
>>
Grand Prix V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

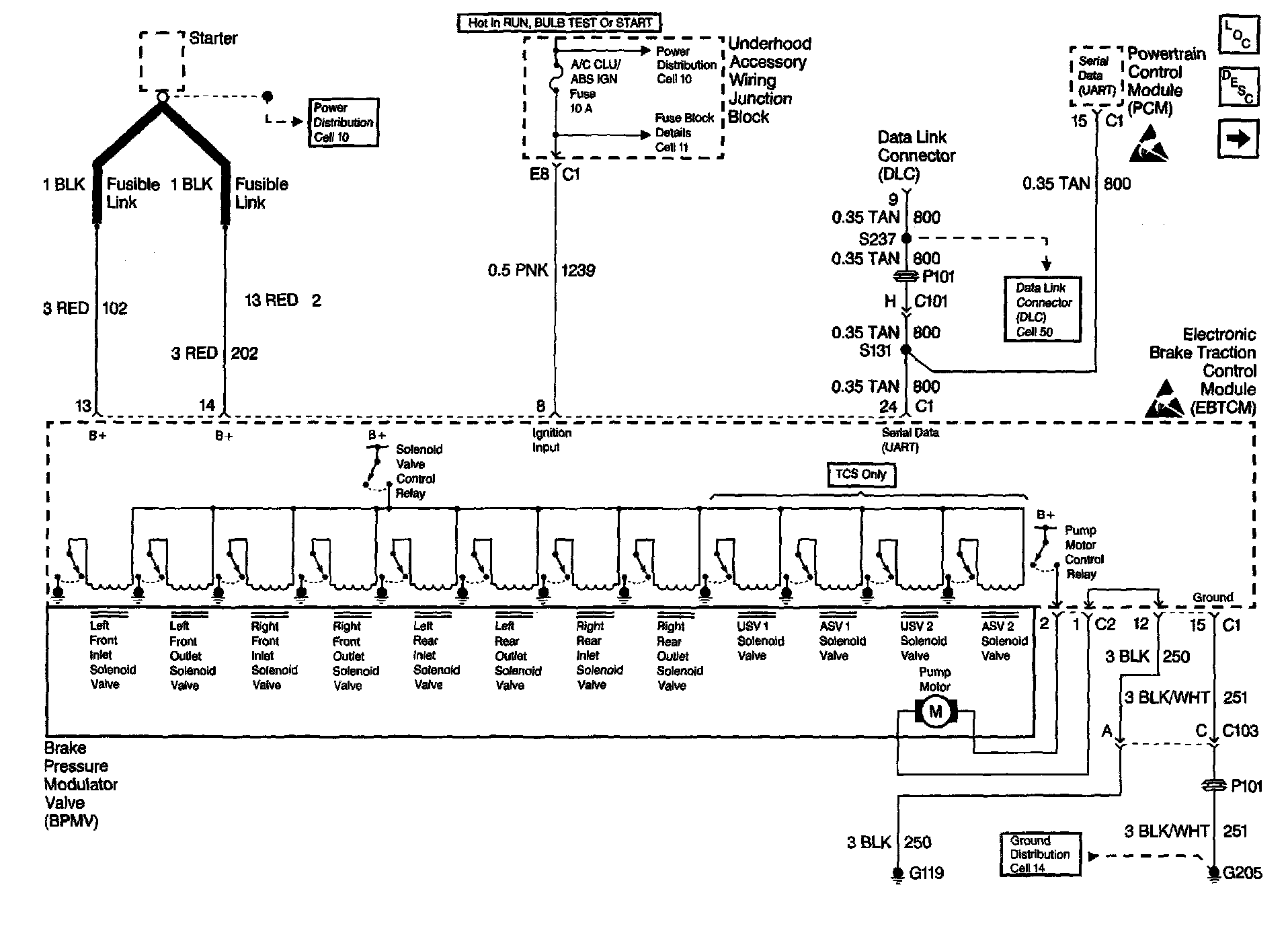

Cell 44: Power, Ground, Serial Data and EBTCM
Cell 44: Power, Ground, Serial Data and EBTCM
