Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1999
>>
Grand Prix V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body and Frame
>>
System Diagram
System Diagram

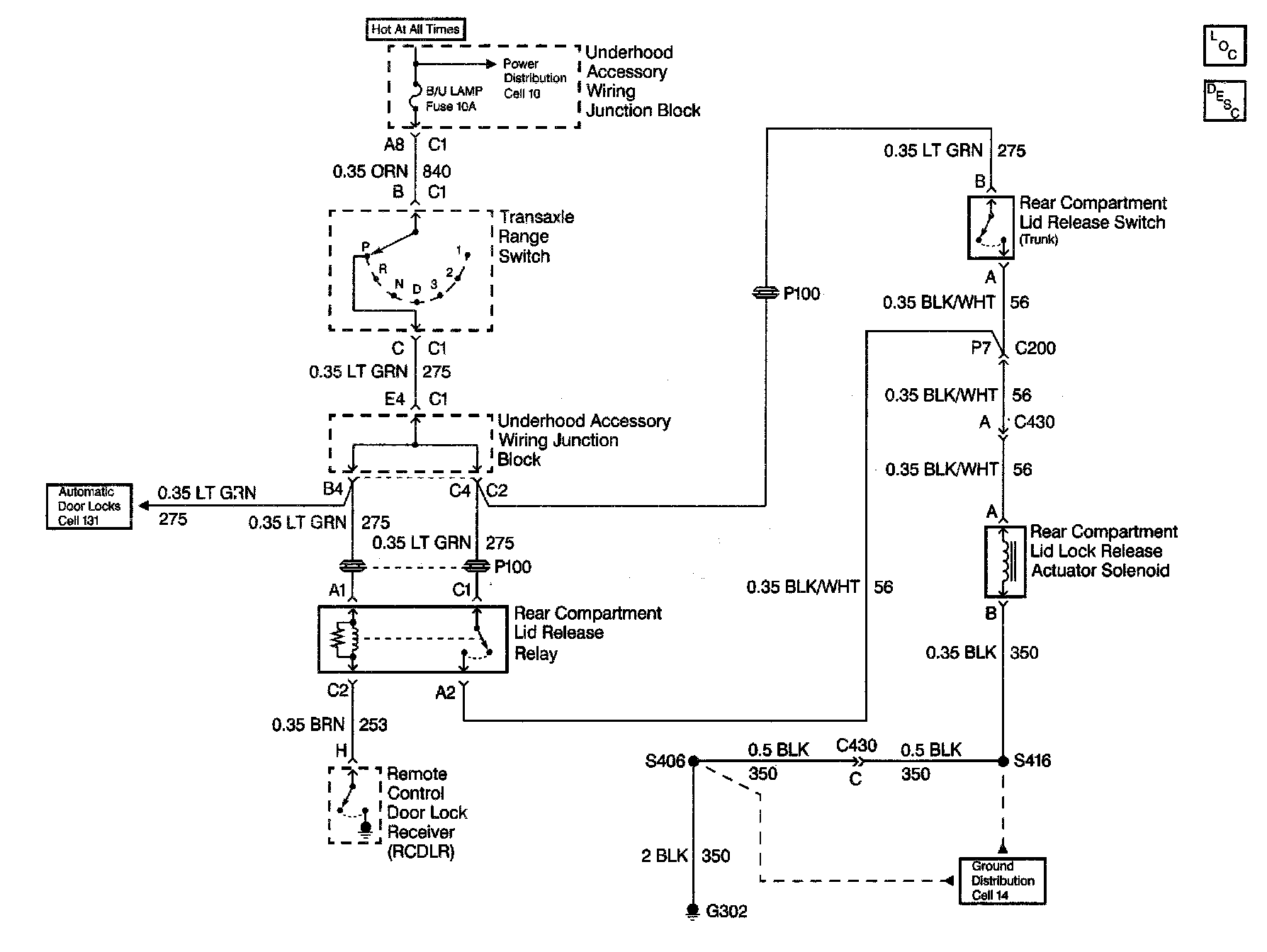

Release Systems Schematics:
