Audible Warning Schematics

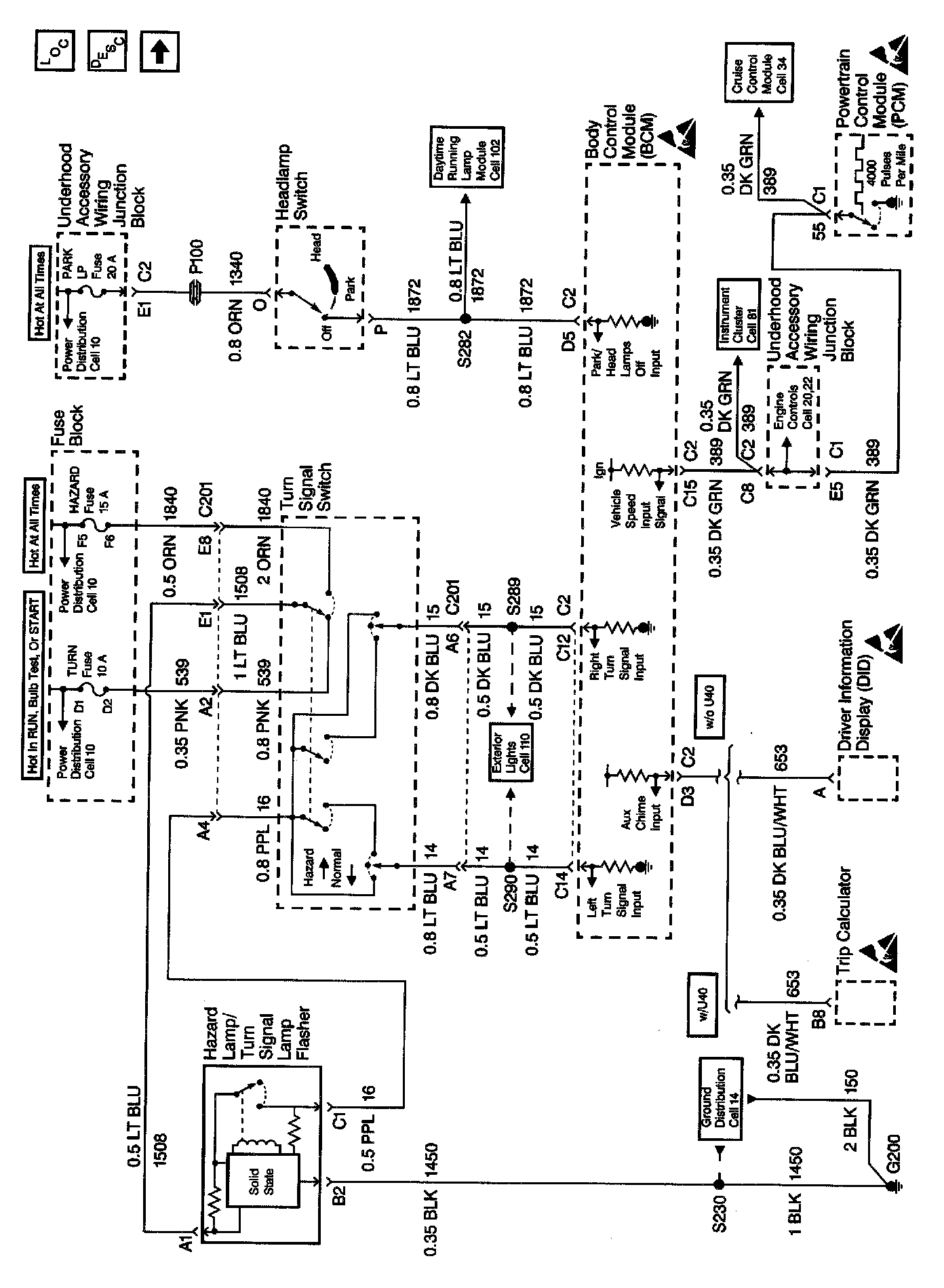

Audible Warnings Schematics: Audible Warnings (Part 1 Of 2):



Audible Warnings Schematics: Audible Warnings (Part 2 Of 2):
