Head Up Display Schematics
Head Up Display Schematics

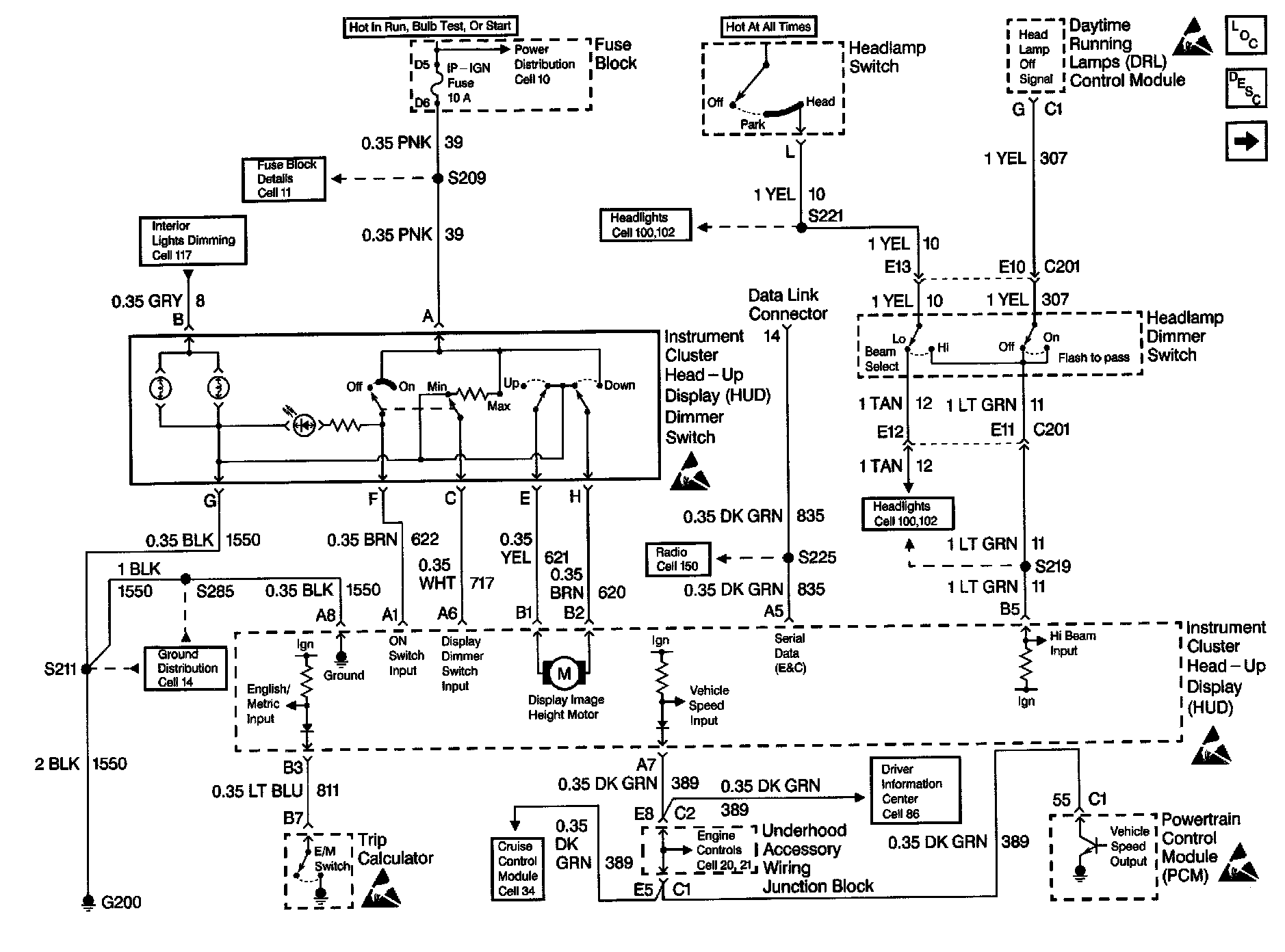

Head Up Display Schematics: HUD (Part 1 Of 2):
Head Up Display Schematics: HUD (Part 2 Of 2):
