Instrument Cluster Analog Schematics

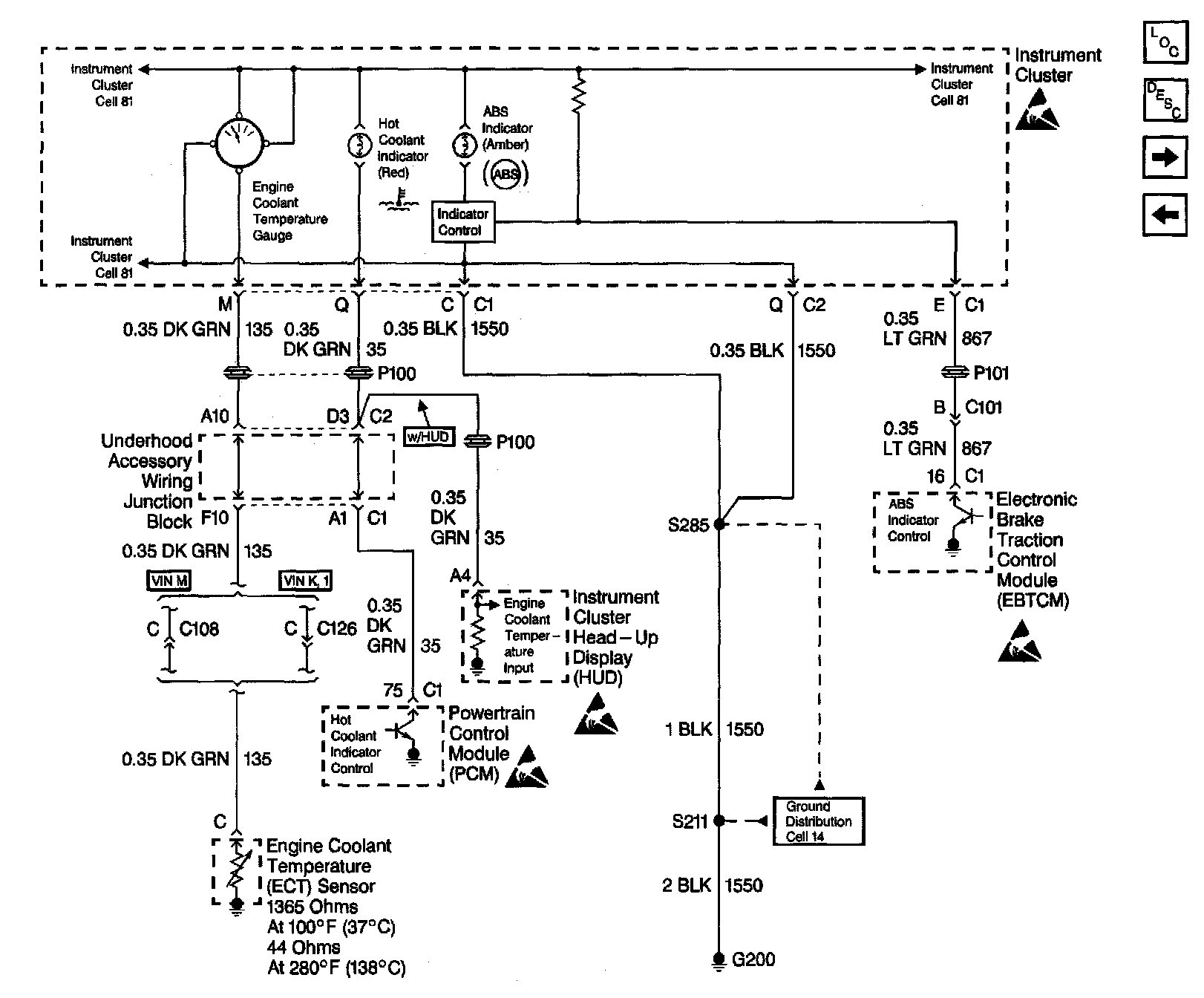

Instrument Cluster: Analog Schematics: Instrument Cluster (Part 1 Of 5):

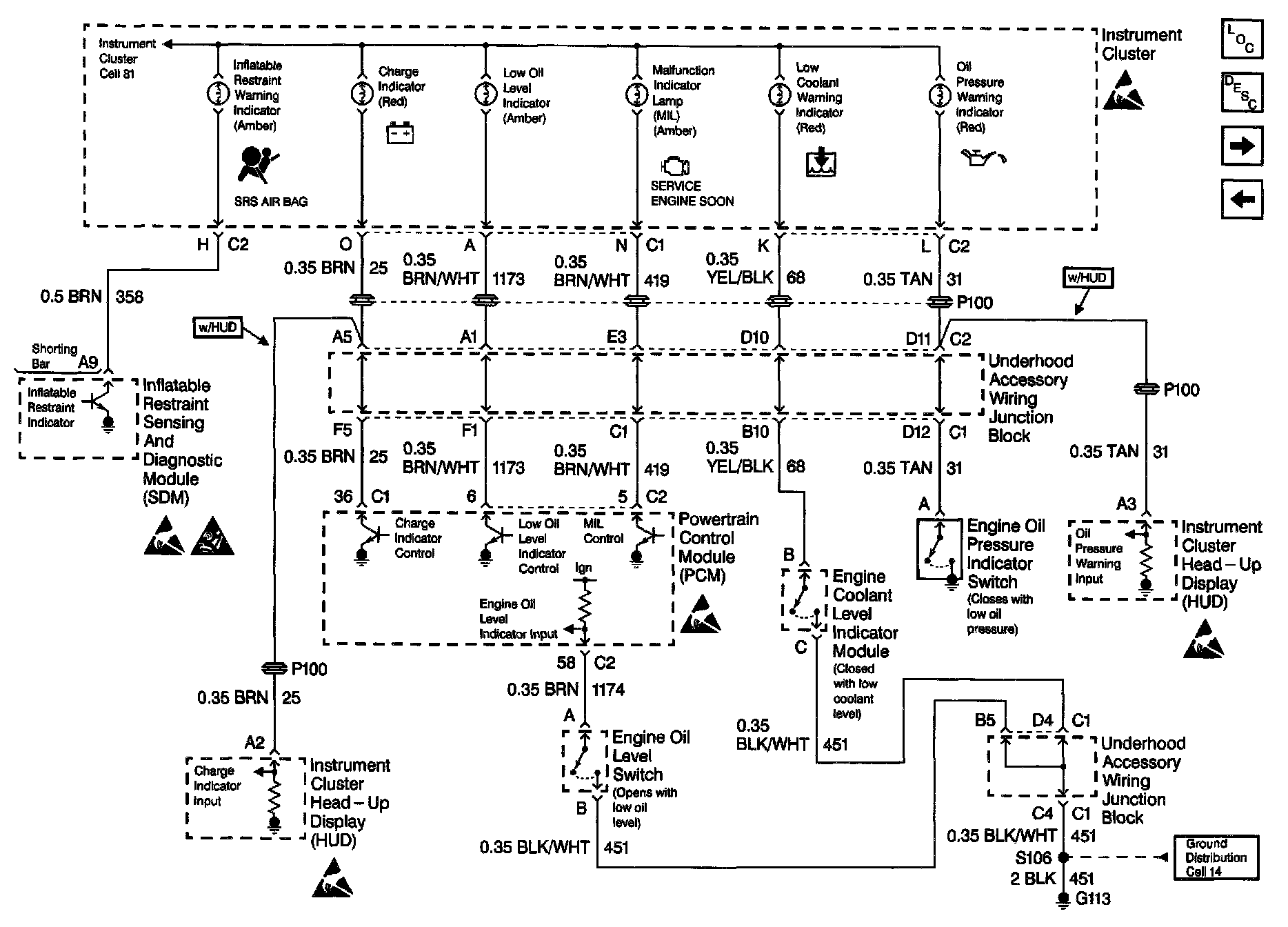

Instrument Cluster: Analog Schematics: Instrument Cluster (Part 2 Of 5):

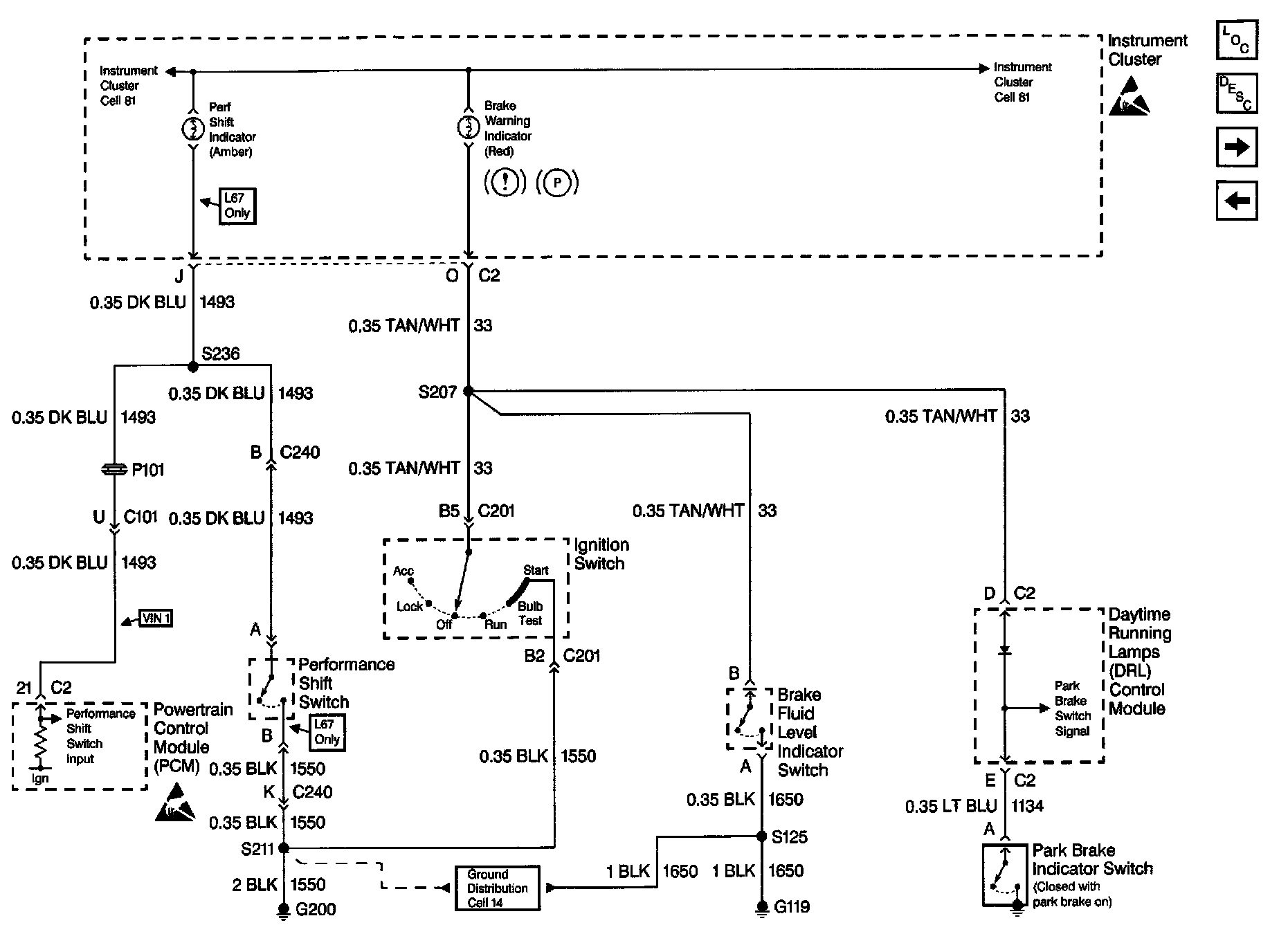

Instrument Cluster: Analog Schematics: Instrument Cluster (Part 3 Of 5):

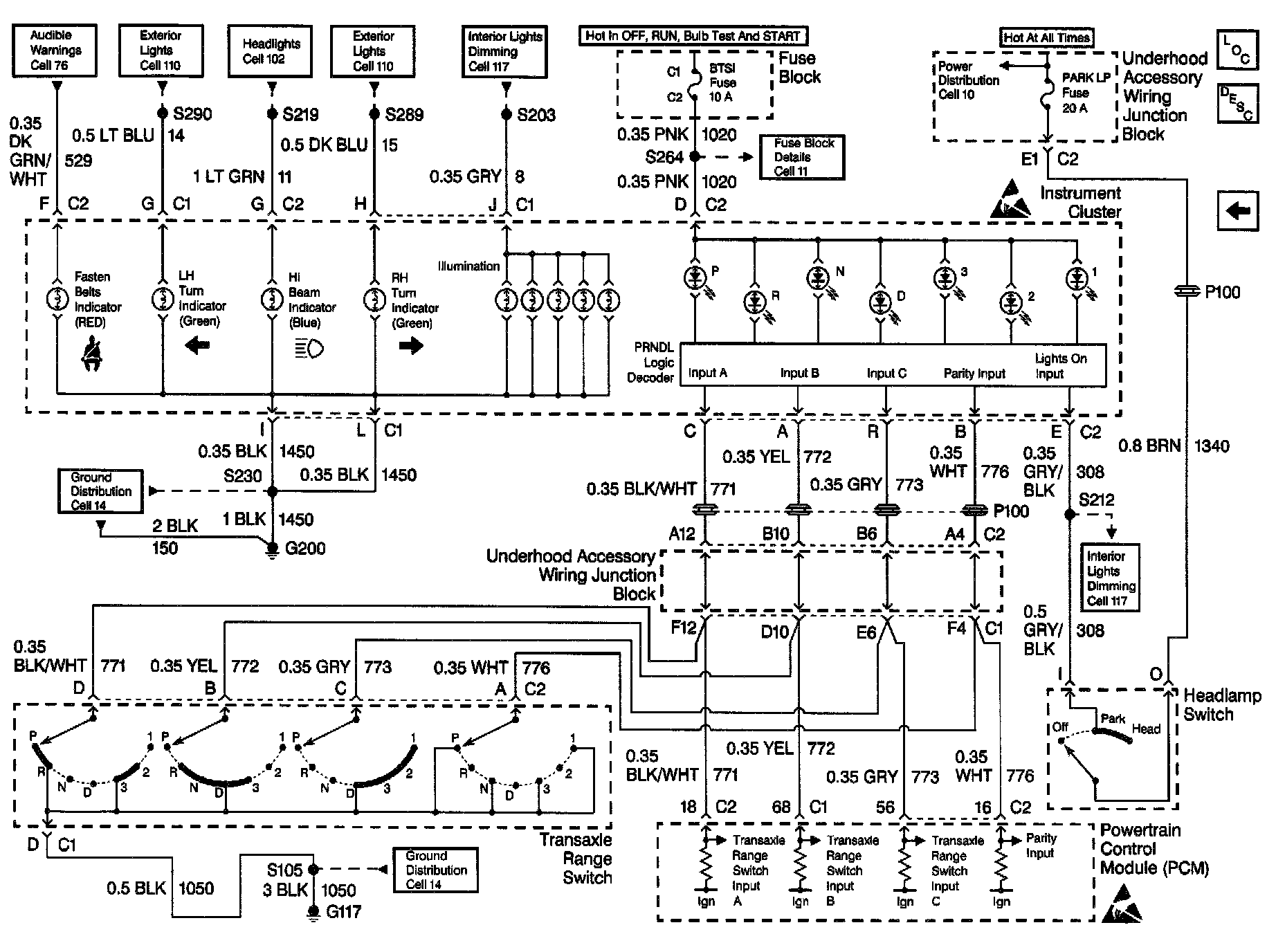

Instrument Cluster: Analog Schematics: Instrument Cluster (Part 4 Of 5):

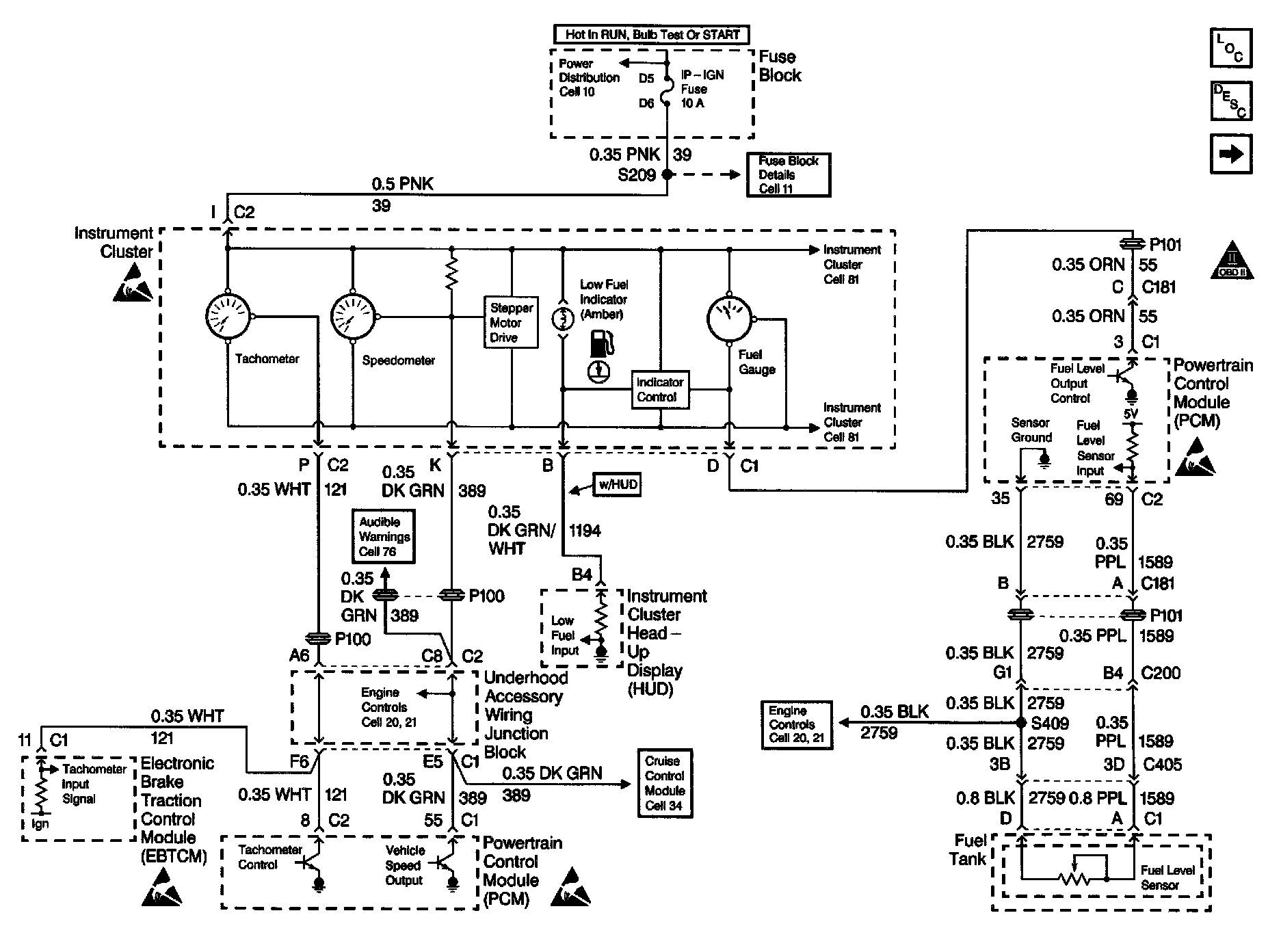

Instrument Cluster: Analog Schematics: Instrument Cluster (Part 5 Of 5):
