Courtesy Lamp Replacement - Overhead Console

REMOVAL PROCEDURE

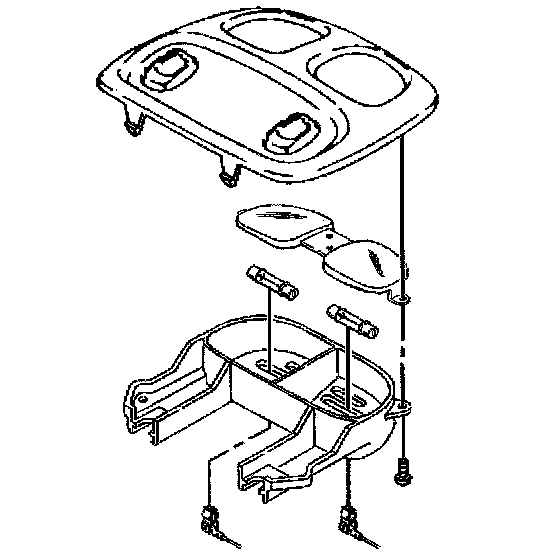

1. Using a small flat-bladed tool, carefully release the two rear retaining tabs on the overhead console lamp bezel.
2. Lower the rear edge of the bezel and release the forward locating tab.
3. Disconnect the electrical connector from the overhead console lamp assembly.
4. Remove the screws retaining the overhead console lamp housing assembly to the lamp bezel.
5. Remove the bezel and the lens from the overhead console lamp housing.
6. Remove the bulb(s) from the socket(s).

INSTALLATION PROCEDURE
1. Install the bulb(s) to the overhead console lamp socket(s).
2. Install the lamp lens and the bezel to the overhead console lamp housing.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the overhead console lamp housing to lamp bezel retaining screws.

Tighten
Tighten the overhead console lamp housing to lamp bezel retaining screws to 11 N.m (97 lb in).

4. Connect the electrical connector to the overhead console lamp assembly.
5. Align and insert the forward locating tab of the overhead console lamp bezel to the overhead console.
6. Align the rear of the lamp bezel to the console and press the bezel into place to secure the rear retaining tabs.
