Marker Lamp Replacement - Front Side

REMOVAL PROCEDURE




NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent damage.

1. Raise the hood.
2. Remove the bolt retaining the park/turn signal lamp housing to the middle of the headlamp bracket.
3. Carefully pivot the park/turn signal lamp housing outboard to access the sidemarker lamp socket.
4. Release the park/turn signal lamp housing retaining tabs (1) from the headlamp bracket slots (2) and support the lamp housing.

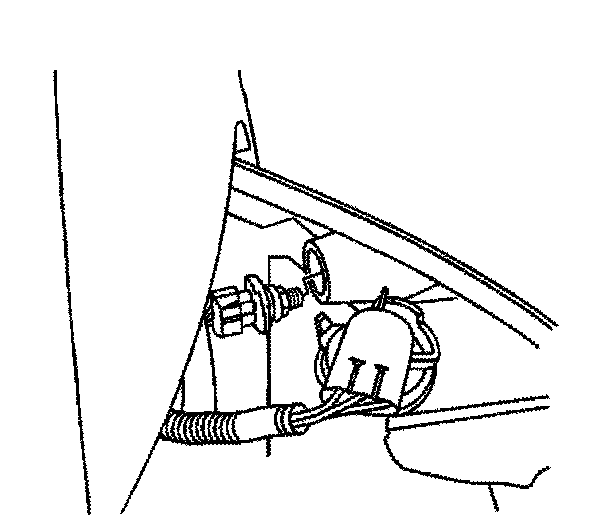

5. Rotate the sidemarker lamp socket counterclockwise to release, then remove the socket from the park/turn signal lamp housing.
6. Remove the bulb from the socket.

INSTALLATION PROCEDURE



1. Install the bulb to the sidemarker lamp socket.
2. Install the sidemarker lamp socket to the park/turn signal lamp housing then rotate the socket clockwise to secure.




3. Align and install the park/turn signal lamp housing retaining tabs (1) to the slots (2) in the headlamp bracket,

IMPORTANT: Be sure that the sidemarker lamp socket wiring is installed into the slot in the headlamp bracket prior to fully installing the park/turn signal lamp housing.

4. Insert the sidemarker lamp socket wiring into the slot in the headlamp bracket.
5. Carefully pivot the park/turn signal lamp housing inboard to the installed position.

NOTE: Refer to Fastener Notice in Cautions and Notices.

6. Install the park/turn signal lamp housing retaining bolt.

Tighten
Tighten the park/turn signal lamp housing retaining bolt to 2 N.m (18 lb in).

7. Lower the hood.
8. Remove any protective tape applied during the removal procedure.
