Vacuum and Vapor Hose Diagrams

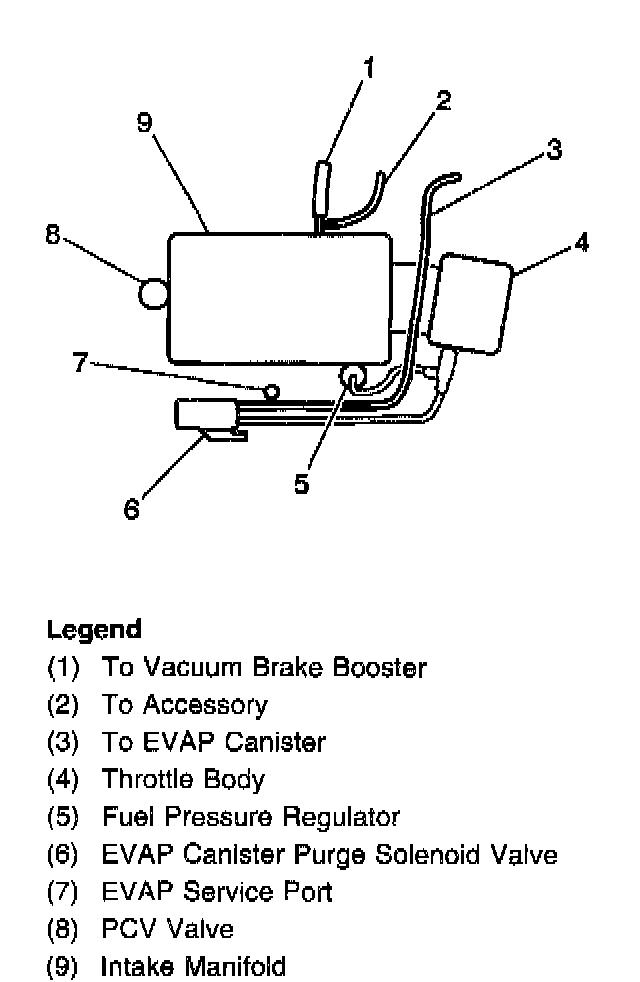

Emission Hose Routing Diagram: EVAP Control System Overview:
Emission Hose Routing:
