Harness Assembly-Electronic Ignition Control Module Wiring
Harness Assembly-Electronic Ignition Control Module Wiring

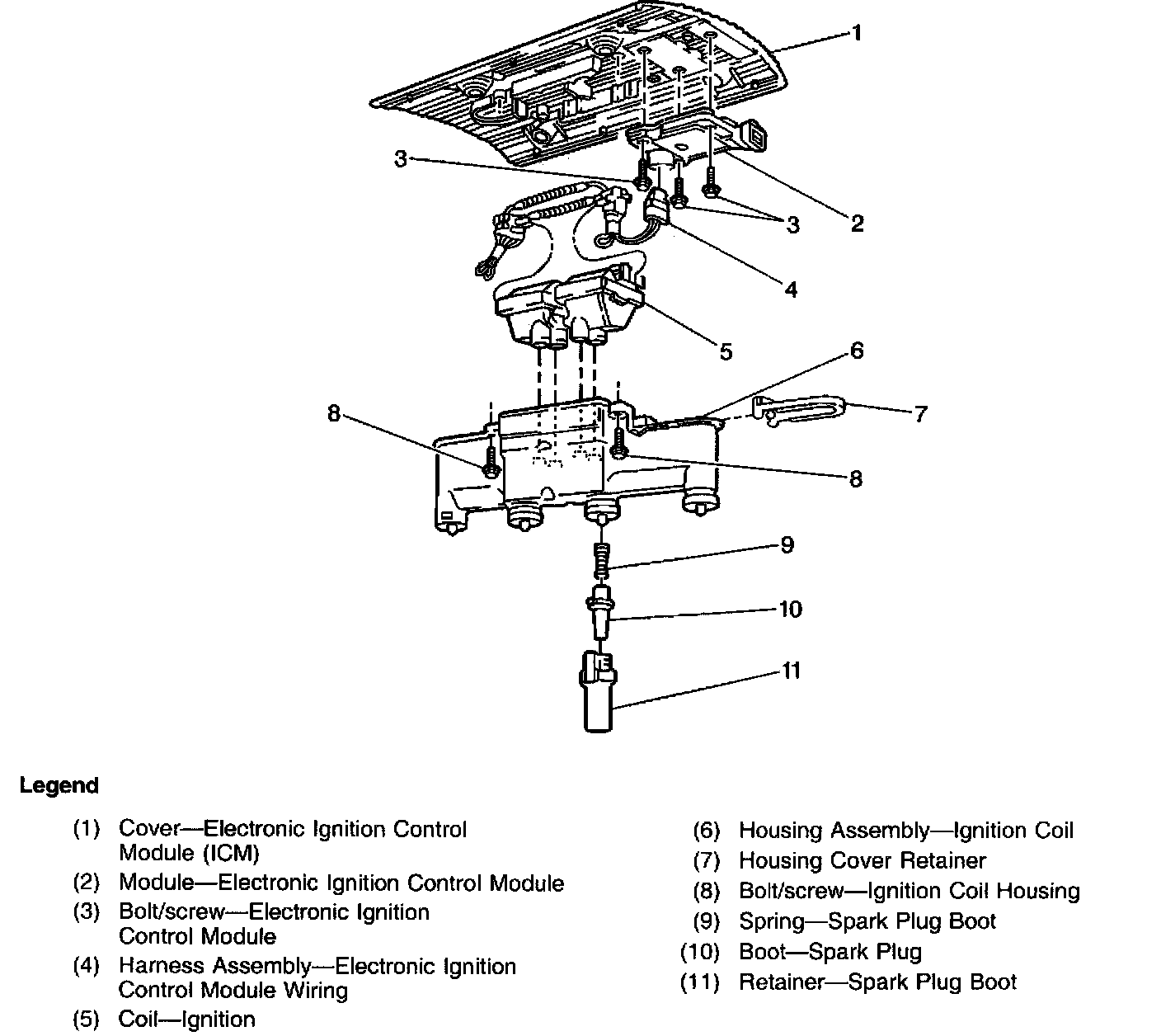

Ignition Coil And Electronic Ignition Control Module:
