Transmission Speed Sensor, A/T








4T40-E/4T45-E

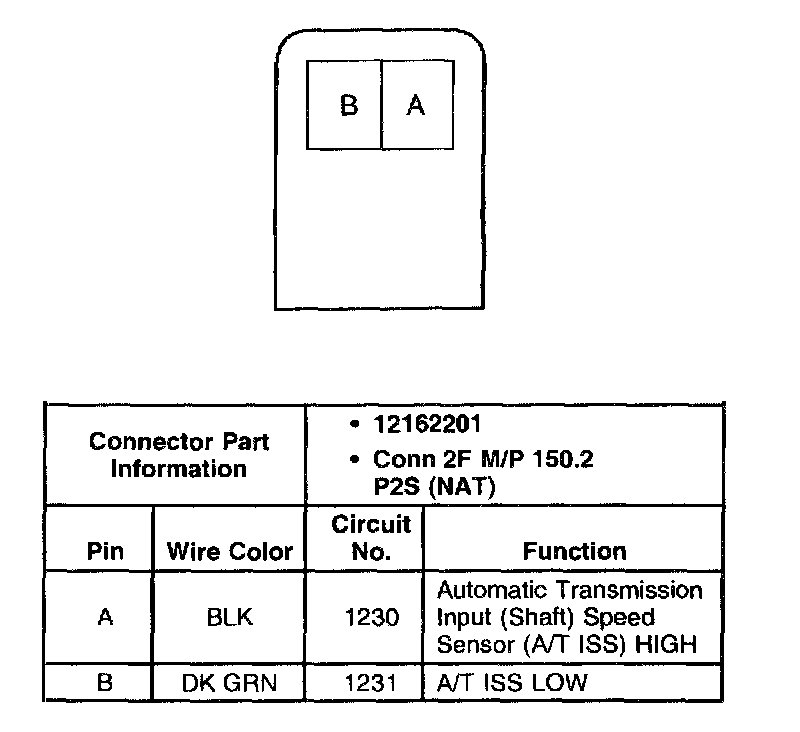

Input Speed Sensor Connector, Wiring Harness Side
