Sunfire L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Convenience Connector C2
Convenience Connector C2

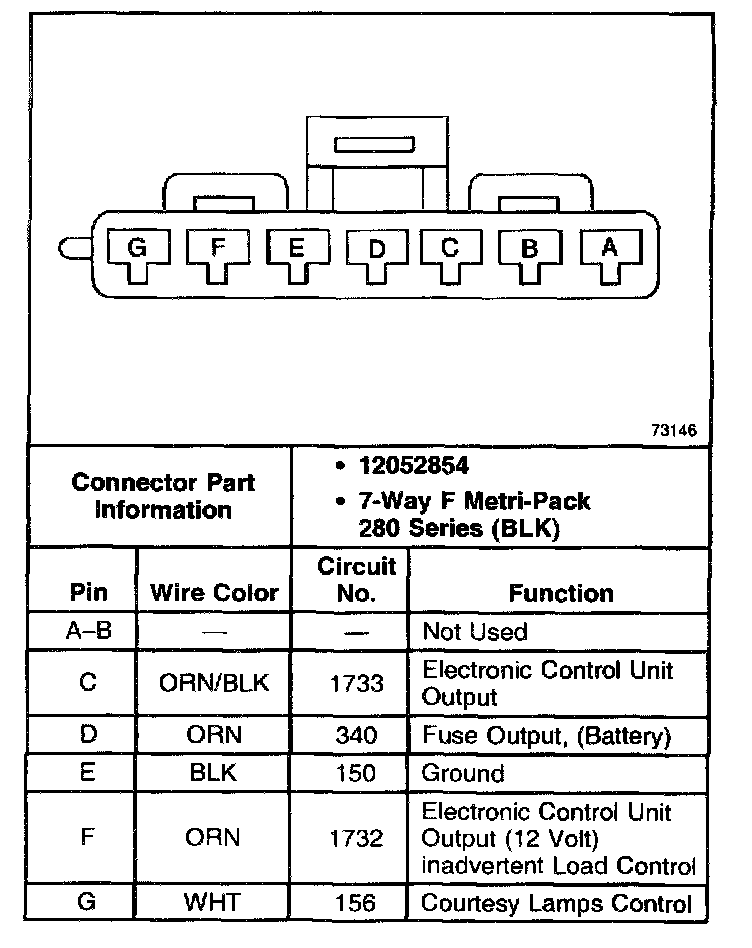

Convenience Connector C2:
