Fuses
>>
EXT LAMP
EXT LAMP

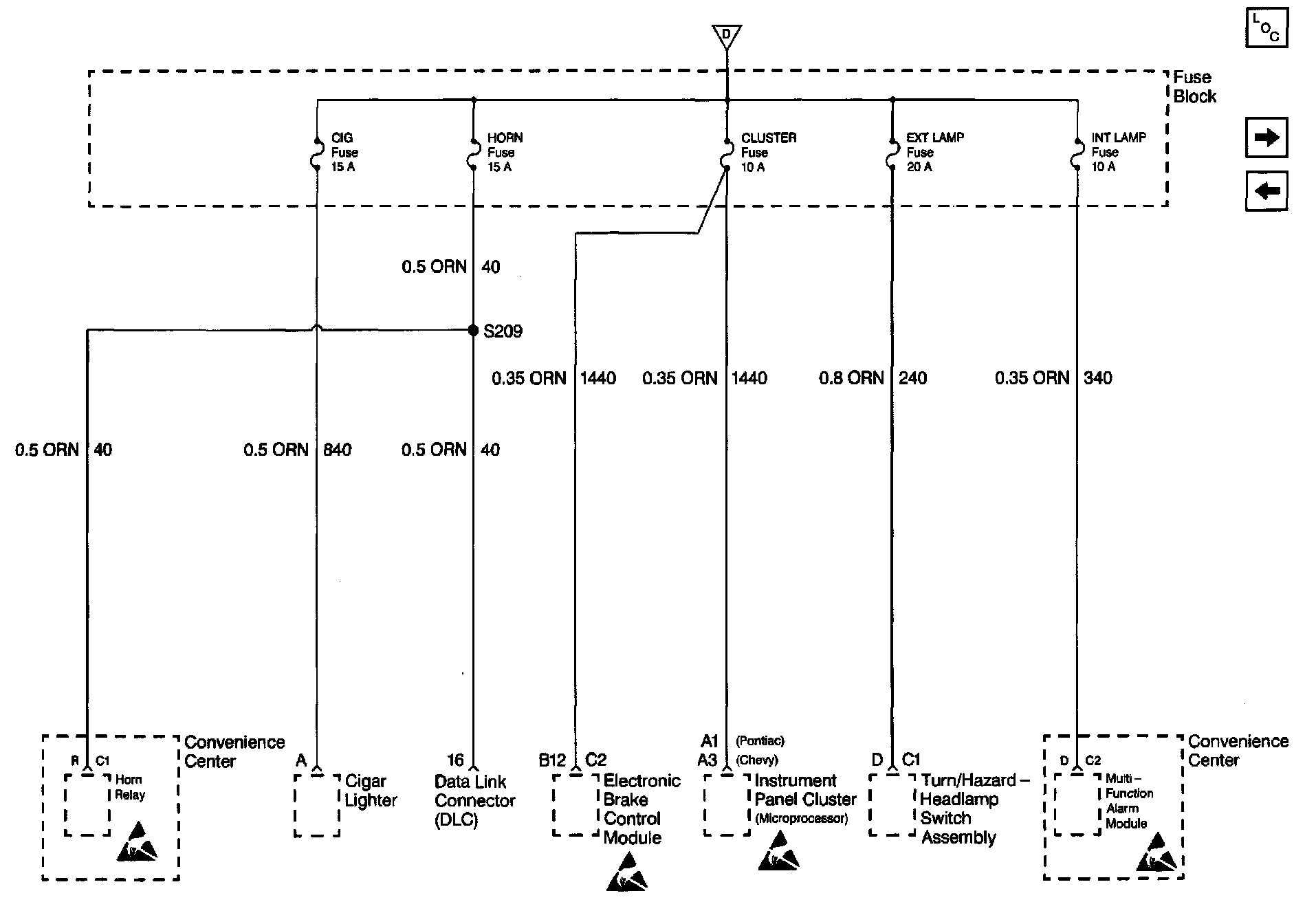

Power Distribution Schematics: CIG, Horn, Cluster, EXT Lamp And INT Lamp Fuses:
