Instrument Panel (IP) - Defroster Grille Replacement

REMOVAL PROCEDURE
1. Use a flat-bladed tool in order to remove the grille from instrument panel.

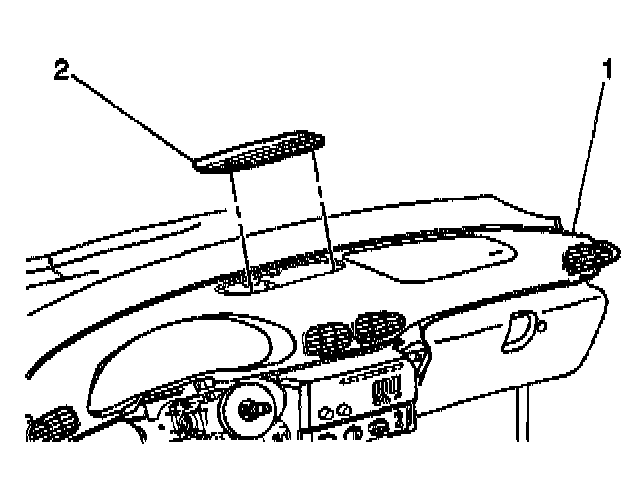

2. Remove the grille (2) from the instrument panel (1).

INSTALLATION PROCEDURE
1. Install the grille (2) to the instrument panel (1).
2. Ensure the unit is retained.
