Instrument Cluster

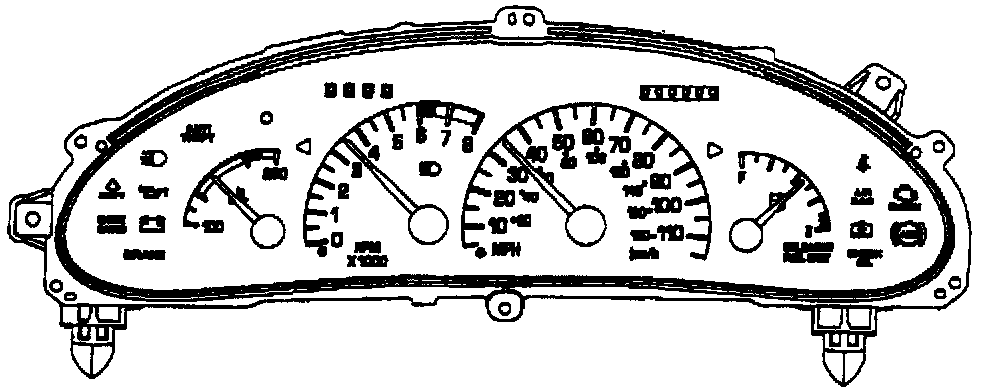

MANUAL CLUSTER U.S.

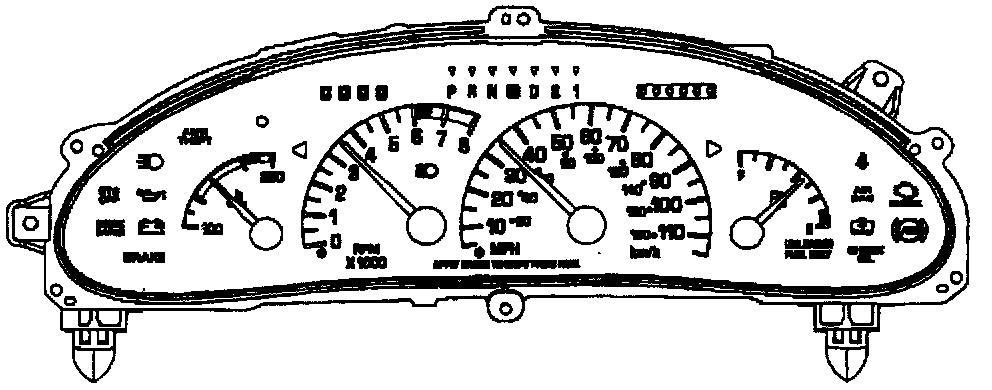

4 SPEED CLUSTER U.S.

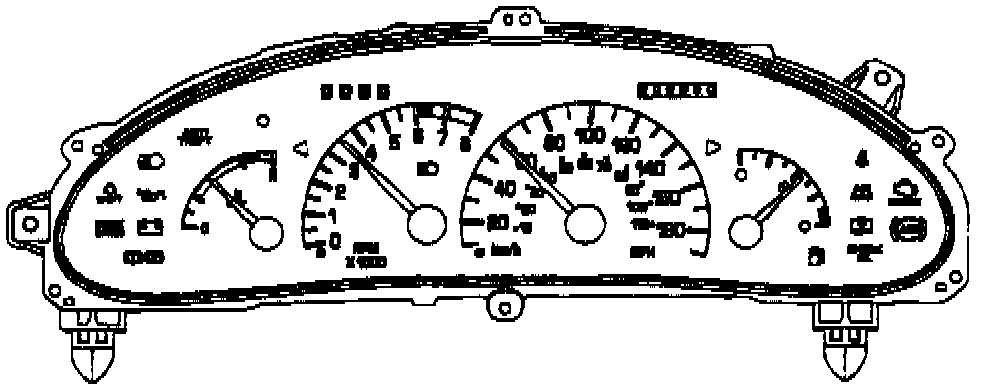

MANUAL CLUSTER CANADA




4 SPEED CLUSTER CANADA


The clusters contain the following components:
^ An electric analog speedometer
^ A stepper motor driven season odometer (gauge cluster only)
^ A trip odometer (gauge cluster only)
^ A temperature gauge
^ An oil pressure gauge
^ A fuel gauge
^ A tachometer (gauge cluster only)
^ The indicator lamps

The indicator lamps include the following components:
^ The air bag
^ The ETS (electronic traction control - Pontiac)
^ The low coolant
^ The fasten safety belts
^ The check engine
^ The up shift (manual transaxle only)
^ The brake
^ The anti-lock
^ The high beam
^ The left turn
^ The right turn
^ The daytime running lamps
^ The volts
^ The check gauges
^ The VDT theft system (Z24 and Pontiac GT)
