Seat Horizontal and Vertical Drive Cable Replacement

Seat Horizontal and Vertical Drive Cable Replacement

Removal Procedure

Caution: Refer to Restraint System Service Precautions in Service Precautions.

1. Disable the SIR system. Refer to Disabling the SIR System () in Restraint Systems.
2. Remove the front bucket seat.
3. Remove the seat cushion frame.

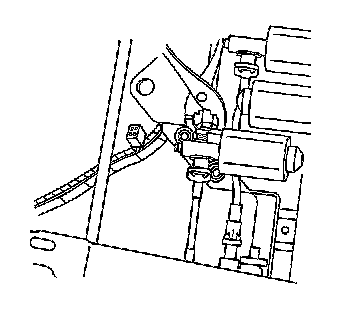

4. If the cable is equipped with a position sensor, remove the sensor retention clip and disconnect the electrical connector.

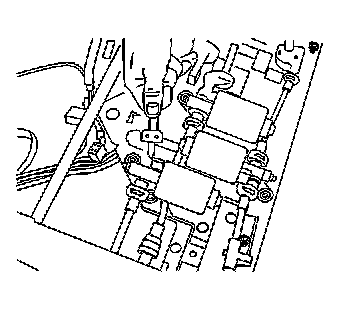

5. Squeeze the collar of the cable in order to release the cable.




6. Pull the cable out of the fitting until the cable end clears the fitting.
7. Remove the cable or cable/sensor assembly.

Installation Procedure




1. Install the cable or cable/sensor assembly by pushing the ends into the fittings until the clip snaps into place.
2. If the cable is equipped with a position sensor, install the sensor retention clip and connect the electrical connector.
3. Install the seat cushion frame.
4. Install the front bucket seat.
5. Enable the SIR system. Refer to Enabling the SIR System () in Restraint Systems.
