Home >> Pontiac >> 2000 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> LH Rear Power Window Motor

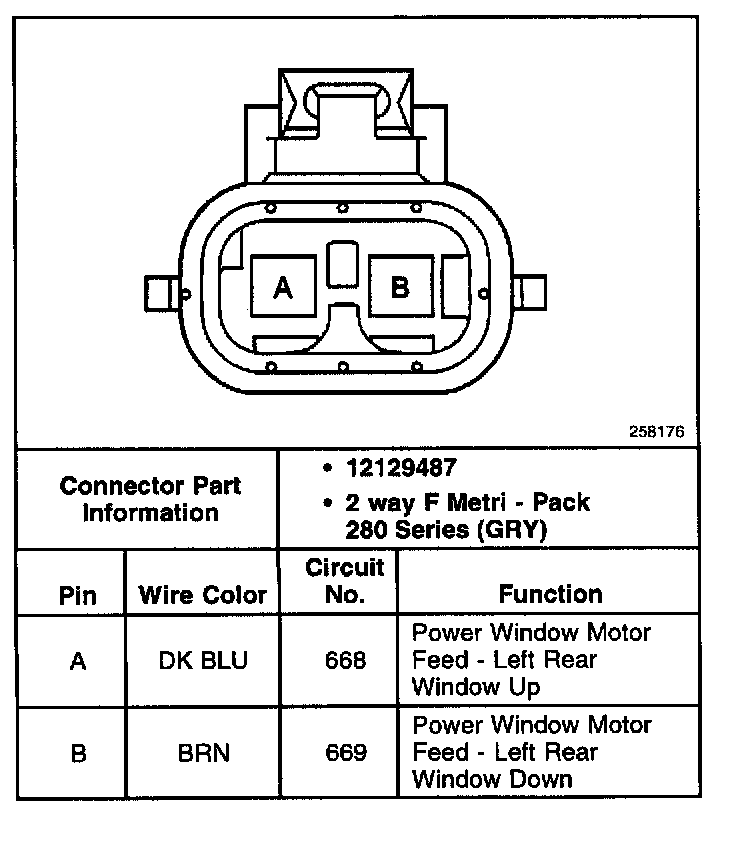

LH Rear Power Window Motor

LH Rear Power Window Motor:
