Clutch Switch, Cruise Control

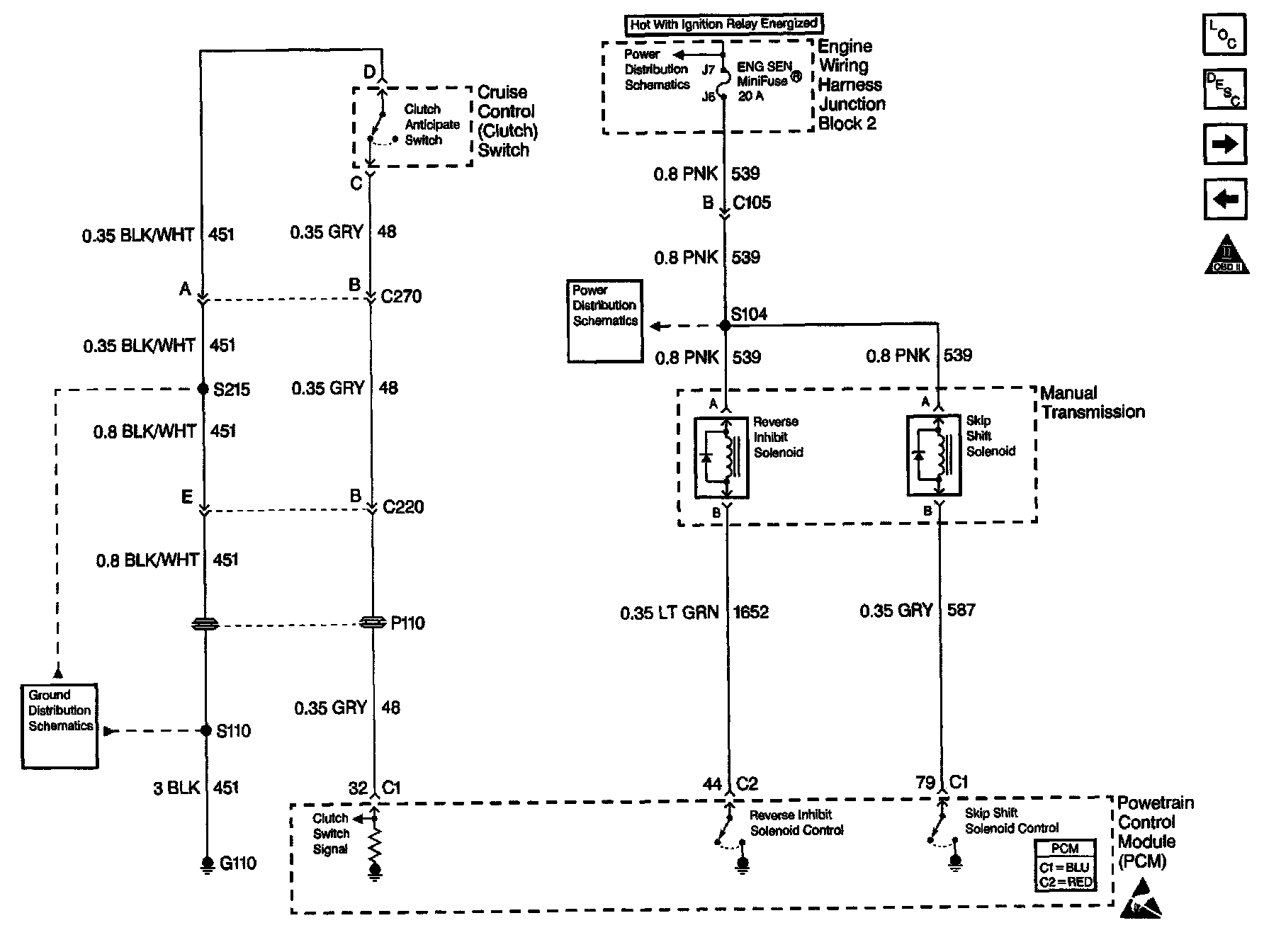

Engine Controls Schematics: Cruise Control Clutch Switch And Manual Transmission:
