Fog Lamps Inoperative - All (Front Lamps - Europe)

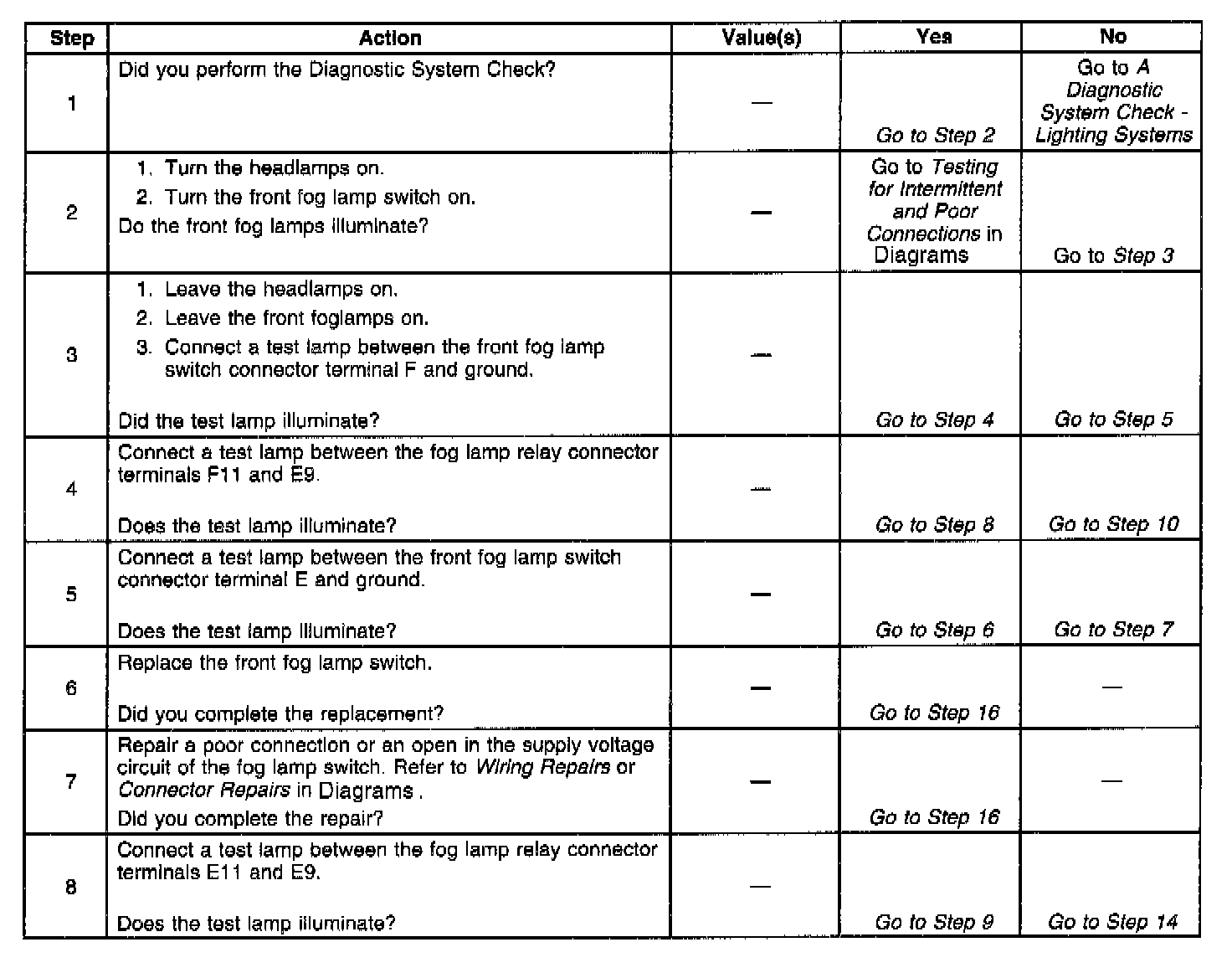

Diagnostic Chart (Part 1 of 2):

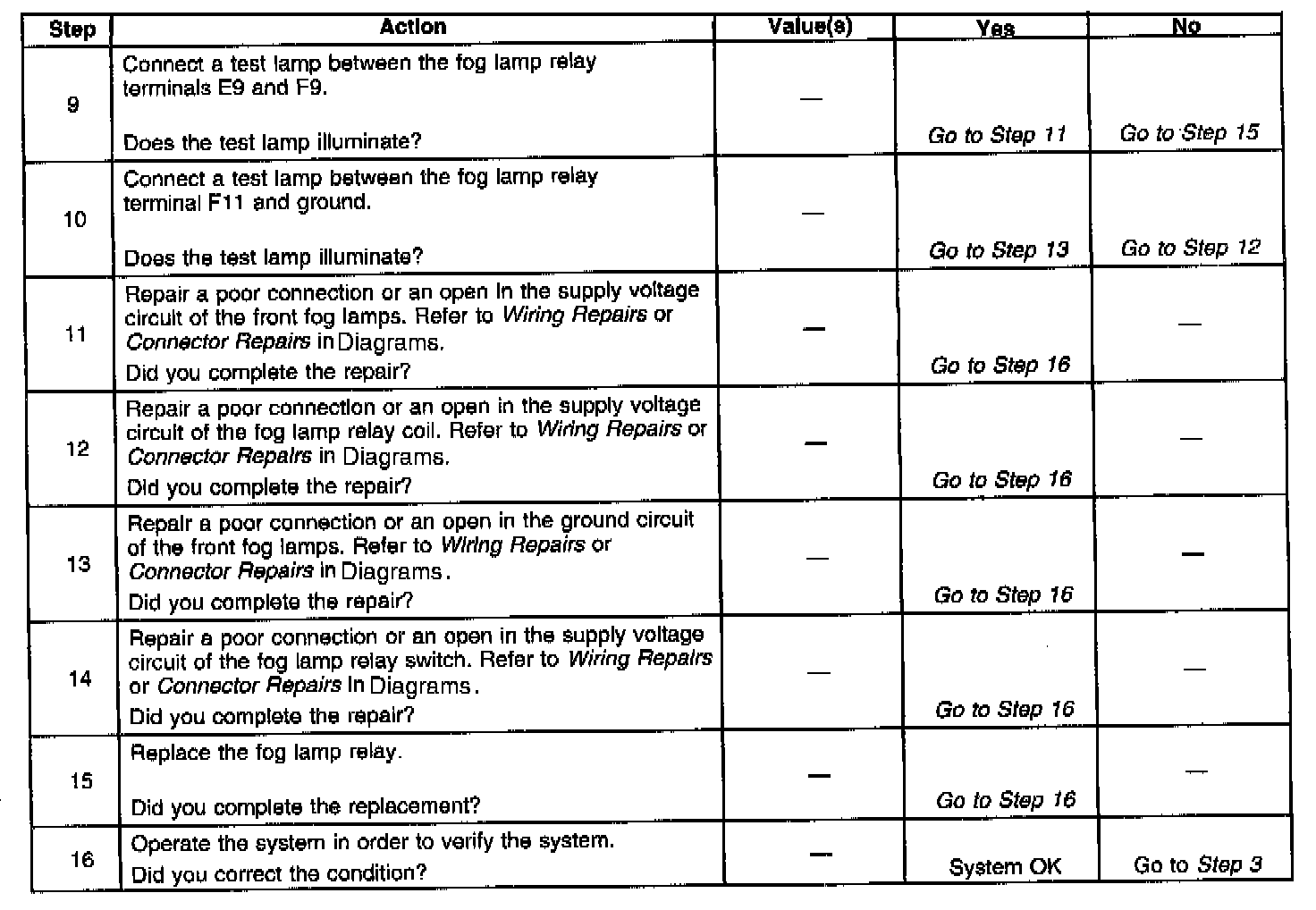

Diagnostic Chart (Part 2 of 2):
