Fog Lamps Inoperative - All (Rear Lamps - Europe)

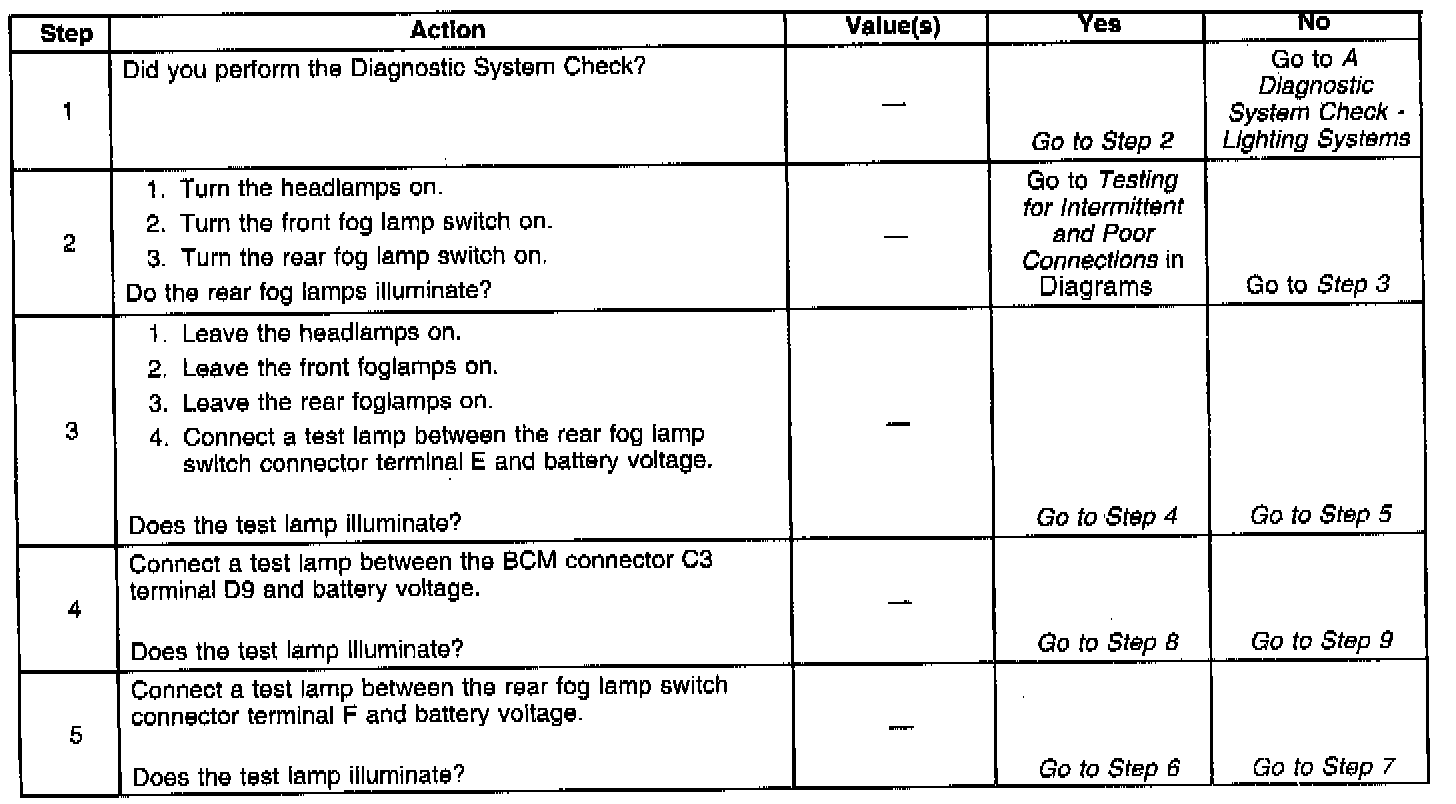

Diagnostic Chart (Part 1 of 3):

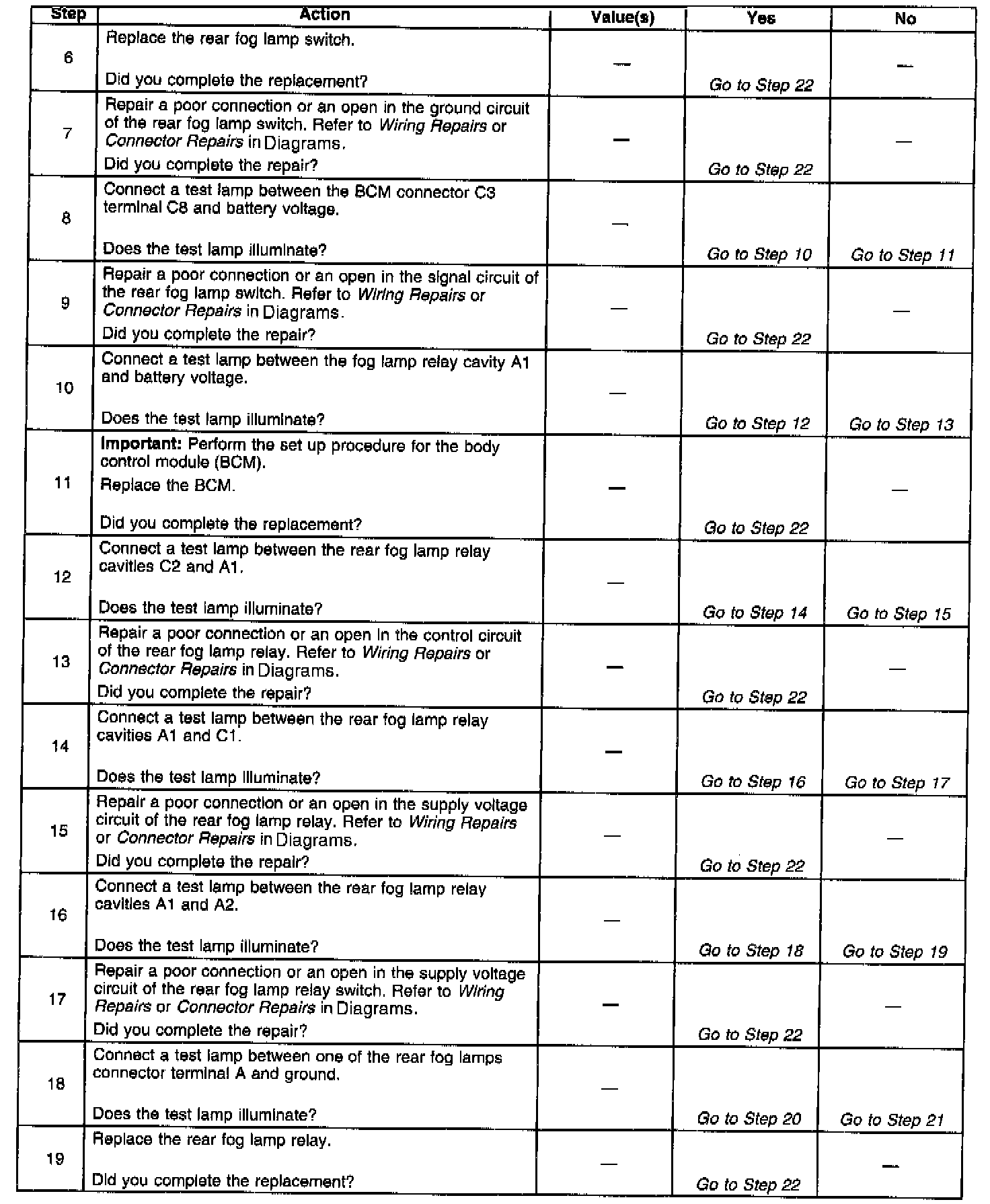

Diagnostic Chart (Part 2 of 3):



Diagnostic Chart (Part 3 of 3):
