Wipers Mist, Delay, and Low Modes Inoperative

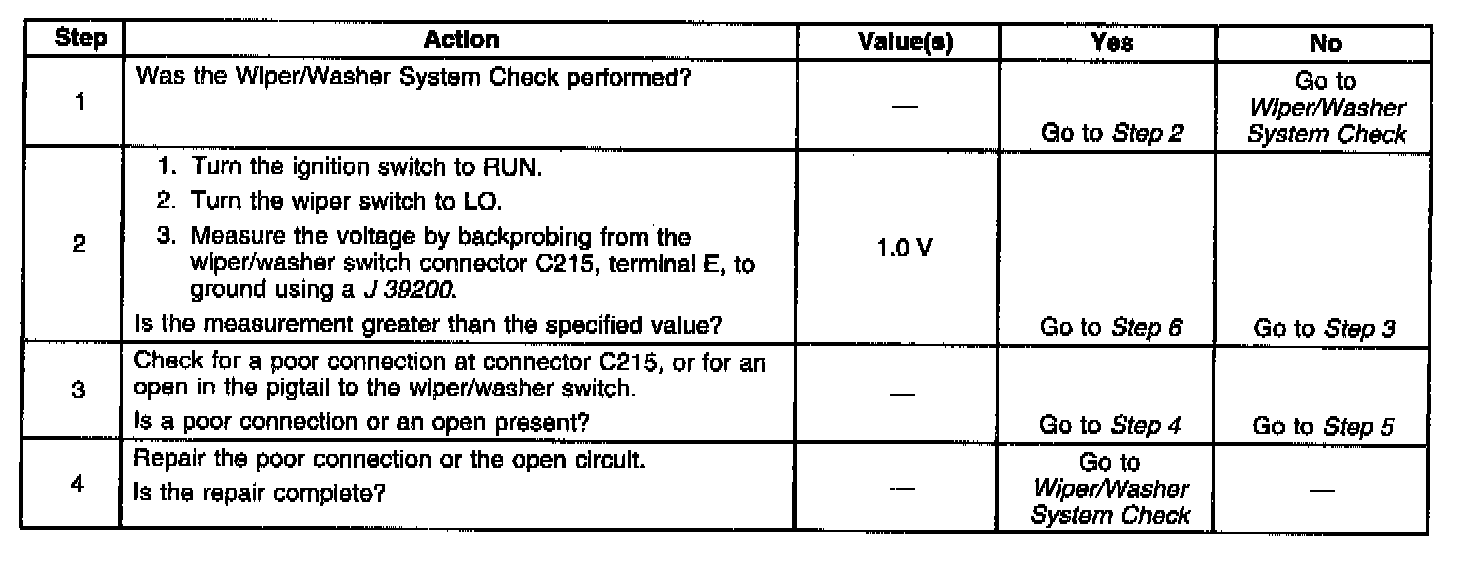

Diagnostic Chart (Part 1 of 2):

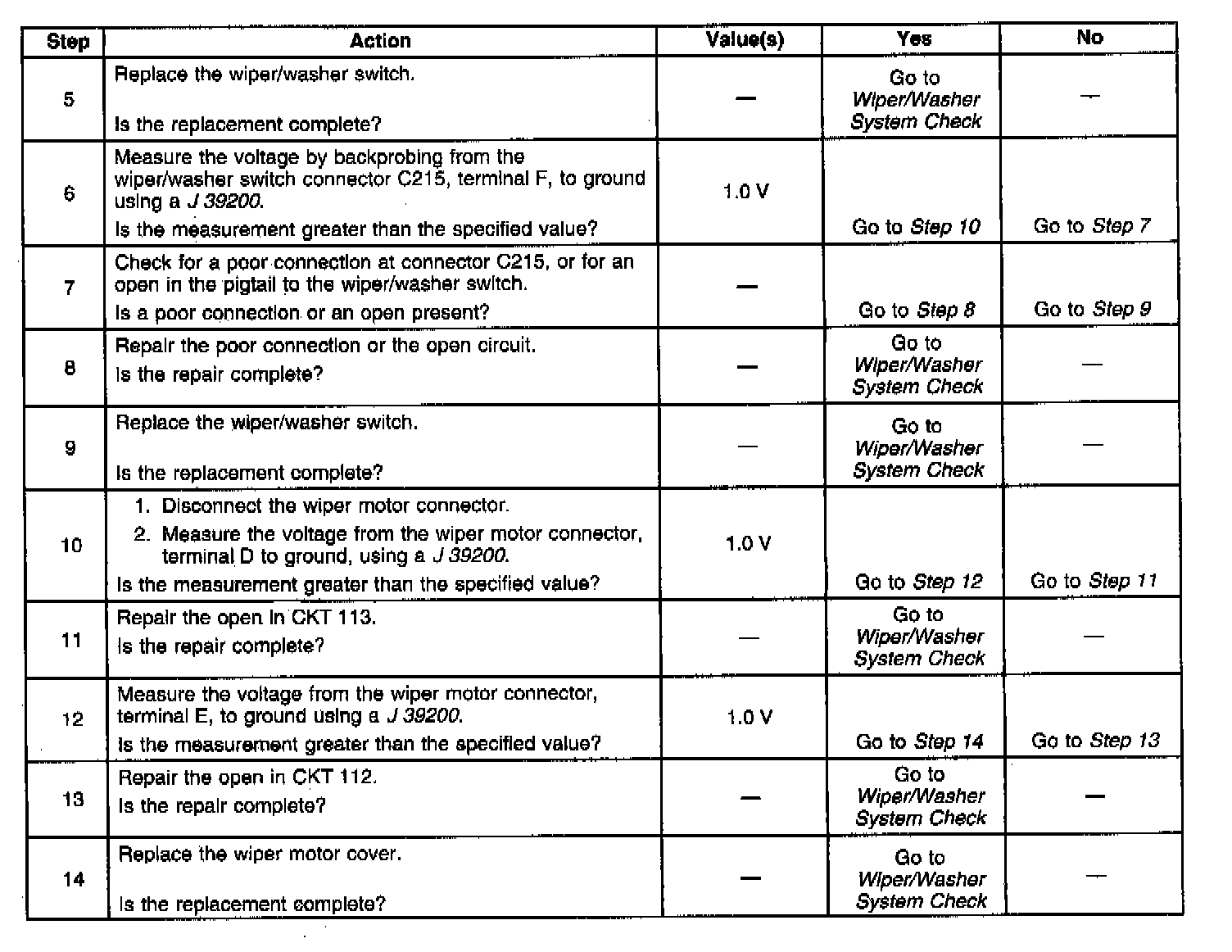

Diagnostic Chart (Part 2 of 2):
