Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2000
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
LH IP Junction Block , C1
LH IP Junction Block , C1

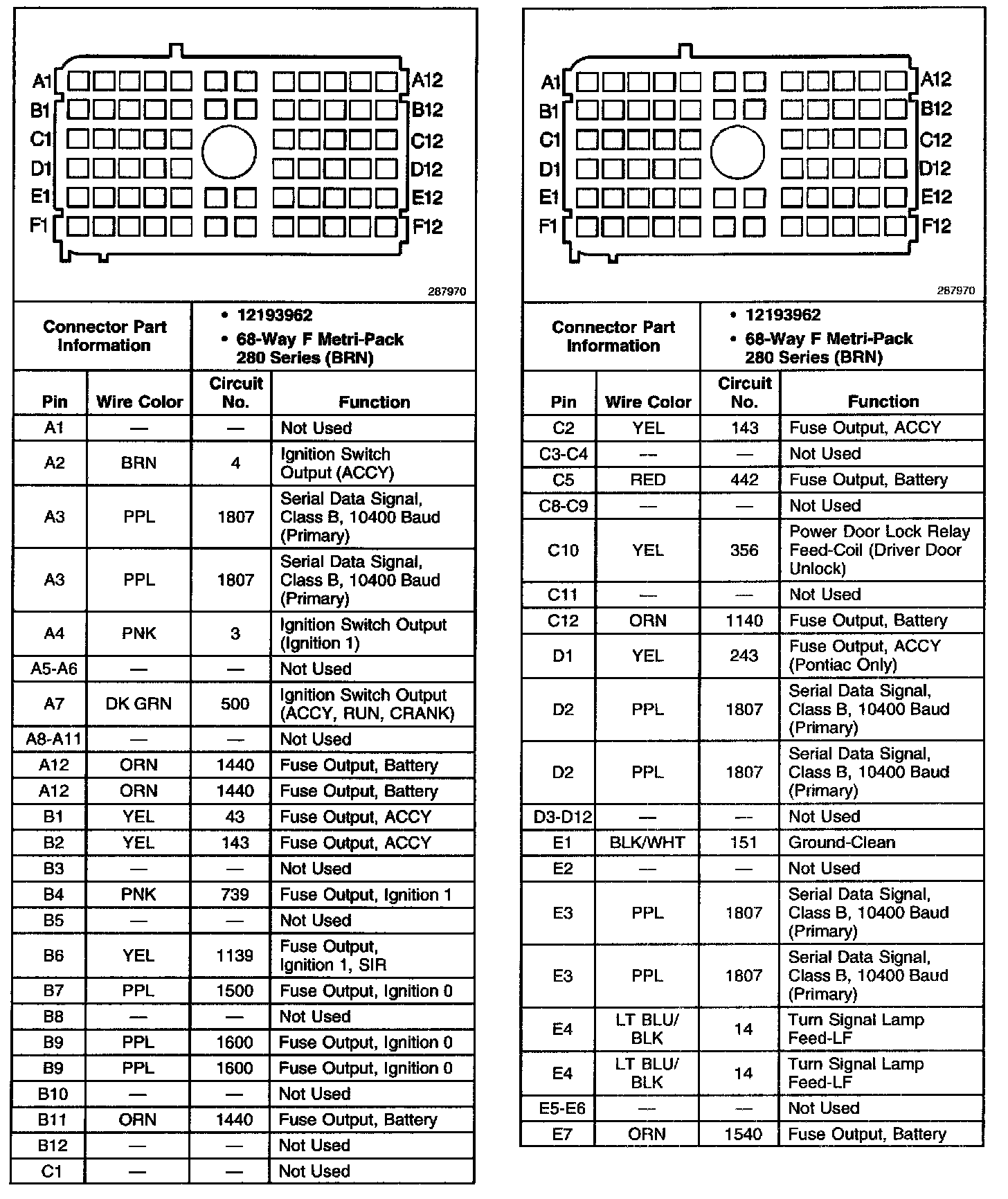

LH IP Junction Block, C1 (Part 1 Of 2):

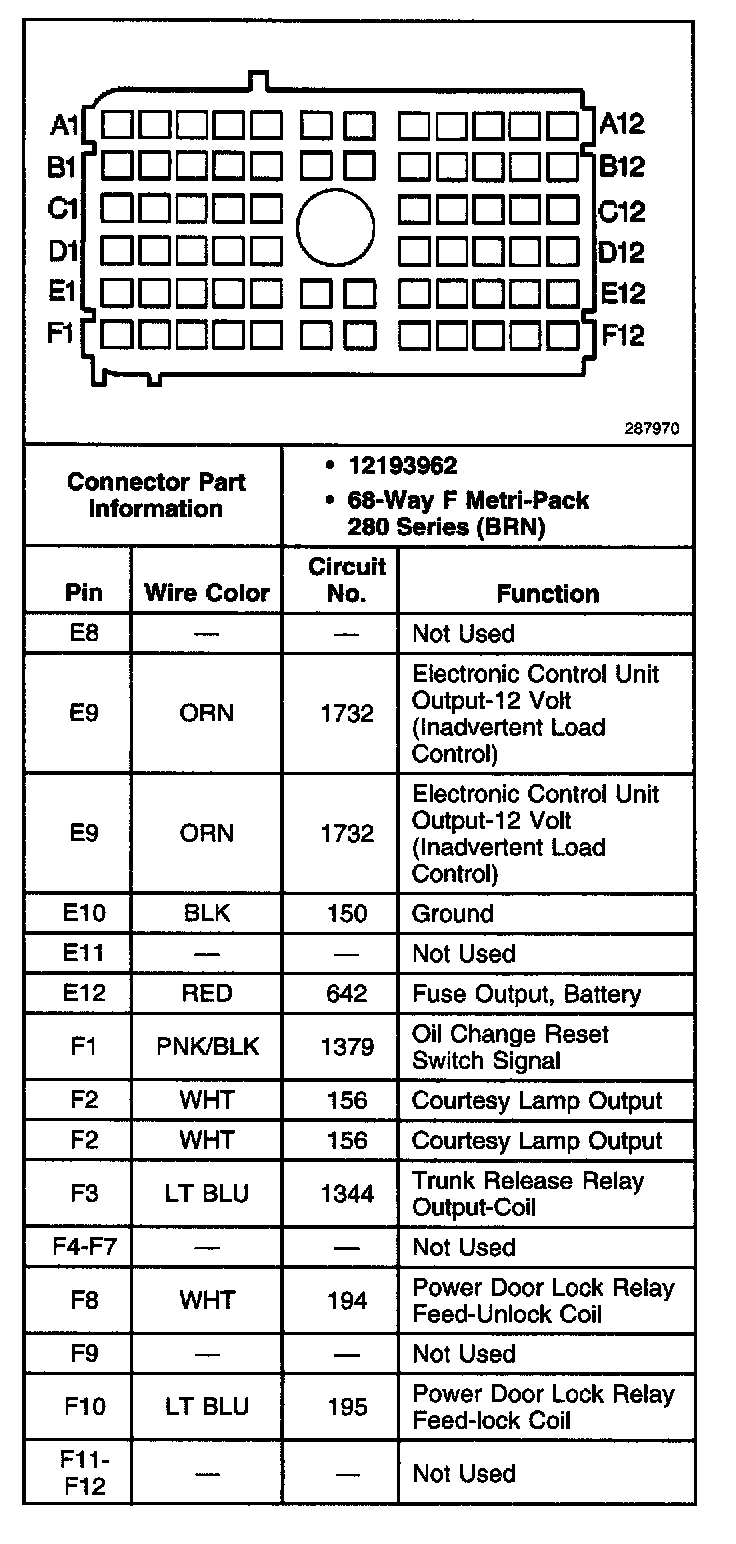

LH IP Junction Block, C1 (Part 2 Of 2):
