Instrument Panel Compartment Lamp/Switch Assembly Connector
Instrument Panel Compartment Lamp/Switch Assembly Connector

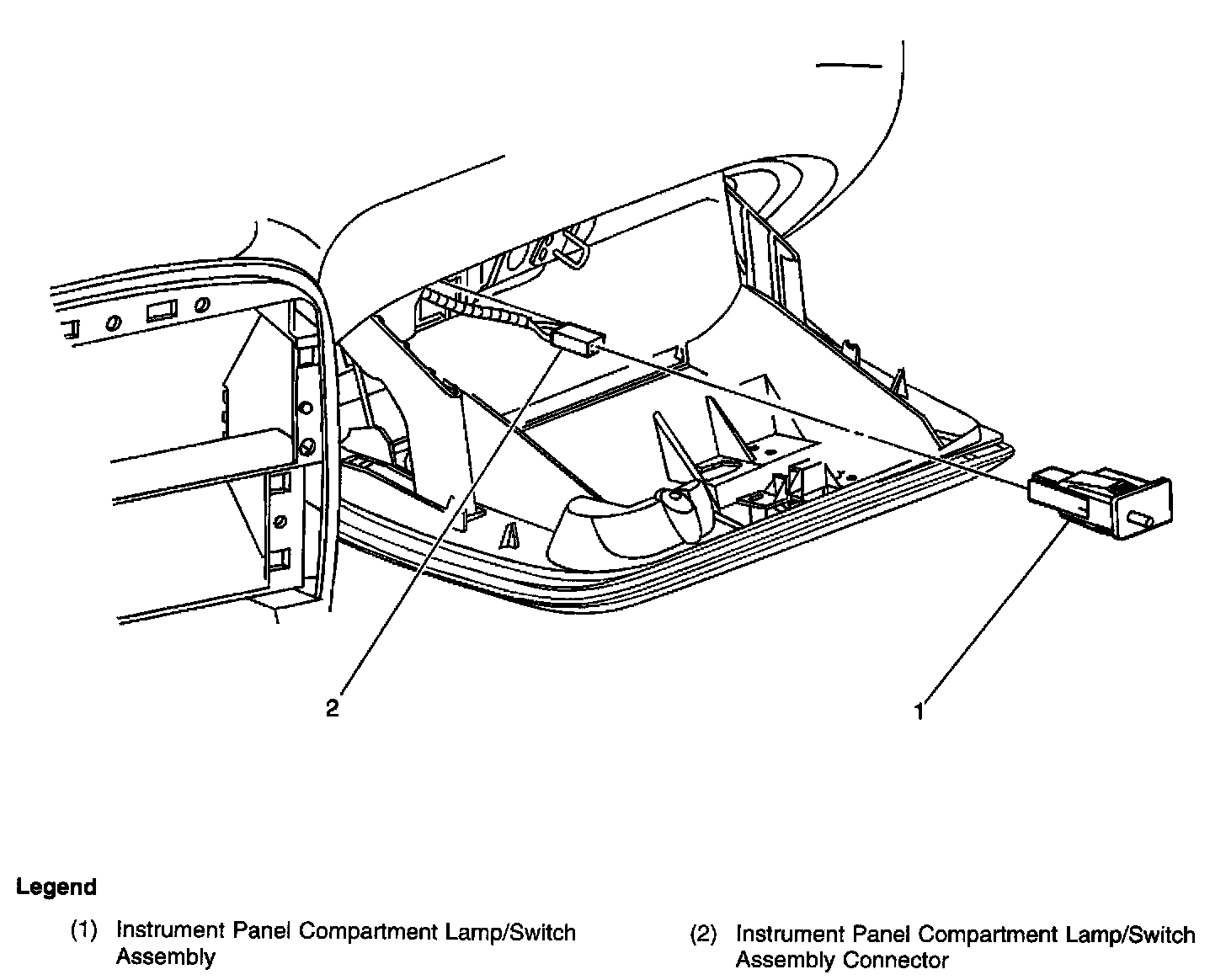

Location View:
