Instrument Cluster, Brake Switch and PCM
Instrument Cluster, Brake Switch and PCM

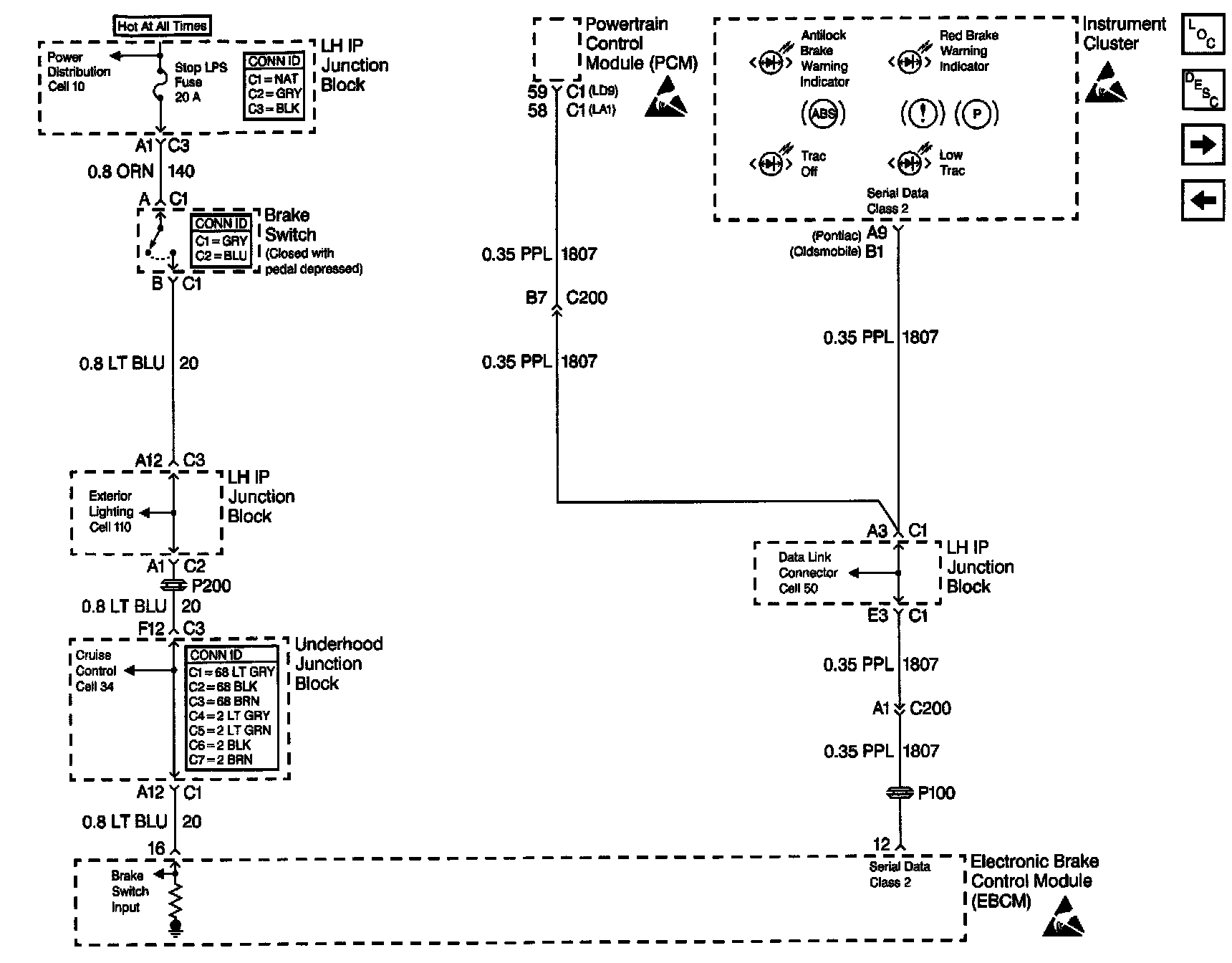

ABS Schematics: Instrument Cluster, Brake Switch And PCM:
