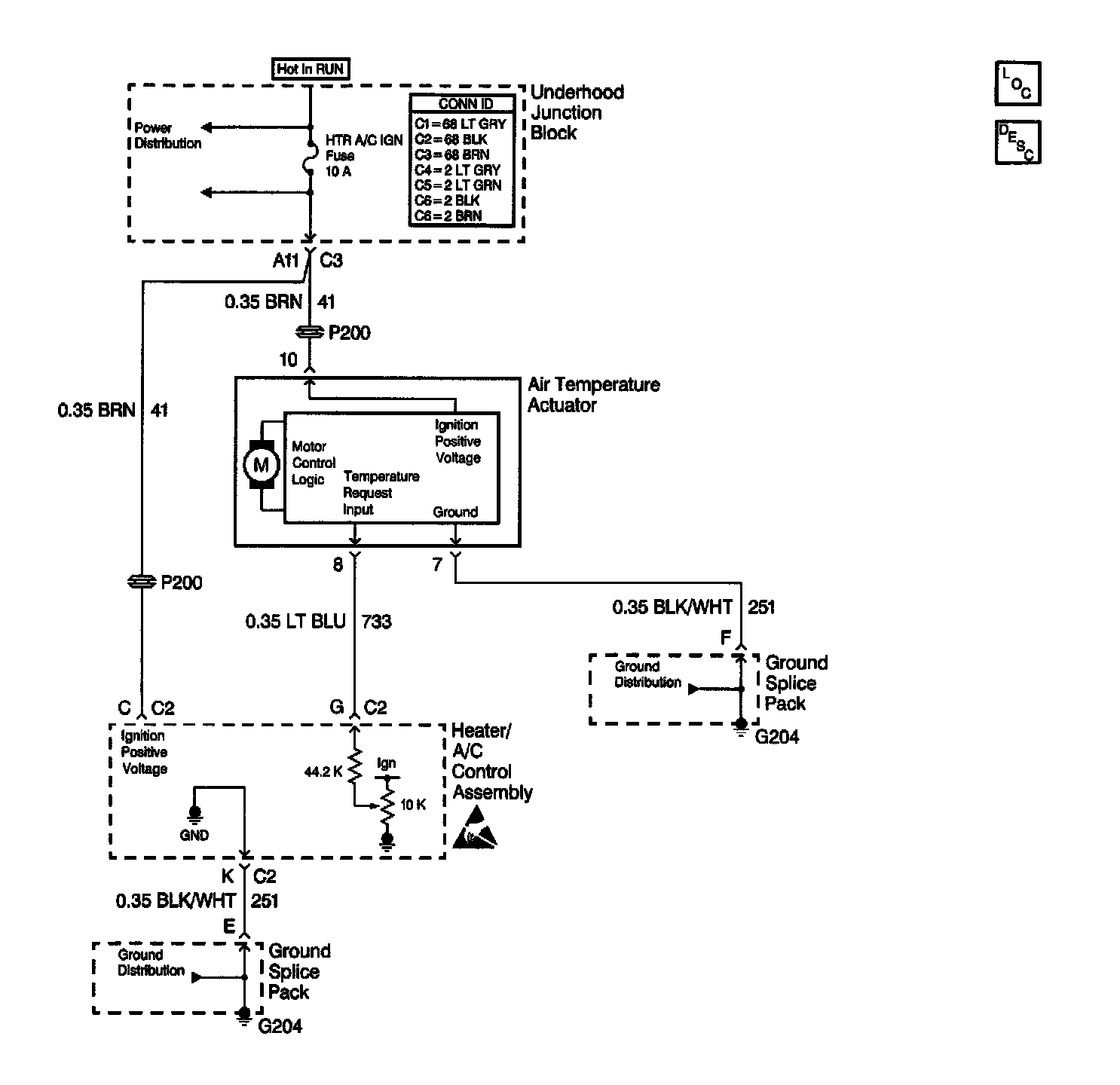

HVAC Air Delivery/Temperature Control Schematics: Cell 65
HVAC Air Delivery/Temperature Control Schematics: Cell 65
HVAC Air Delivery/Temperature Control Schematics:
