Vacuum Reservoir HVAC: Service and Repair

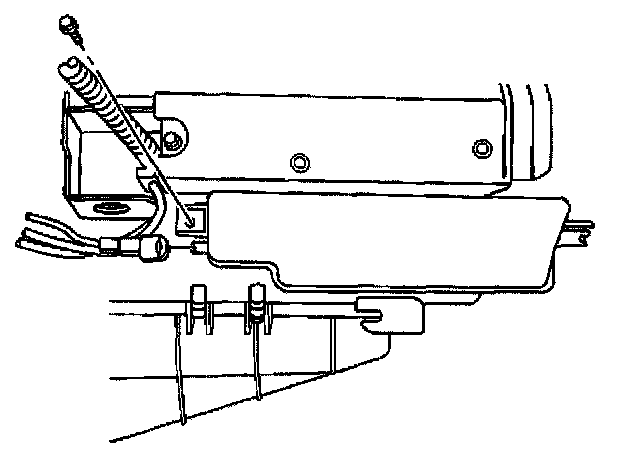

VACUUM TANK REPLACEMENT

REMOVAL PROCEDURE




1. Remove the HVAC module.
2. Remove the violet vacuum hose from the vacuum tank.
3. Remove the vacuum tank screw.




4. Remove the vacuum tank from the HVAC module. Slide the mounting tab from the bracket.

INSTALLATION PROCEDURE




1. Install the vacuum tank to the HVAC module. Slide the mounting tab into the bracket.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the vacuum tank screw.

Tighten
Tighten the vacuum tank screw to 1 N.m (9 lb in).

3. Connect the violet vacuum tank hose.
4. Install the HVAC module.
