Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2000
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning System Schematics
Brake Warning System Schematics

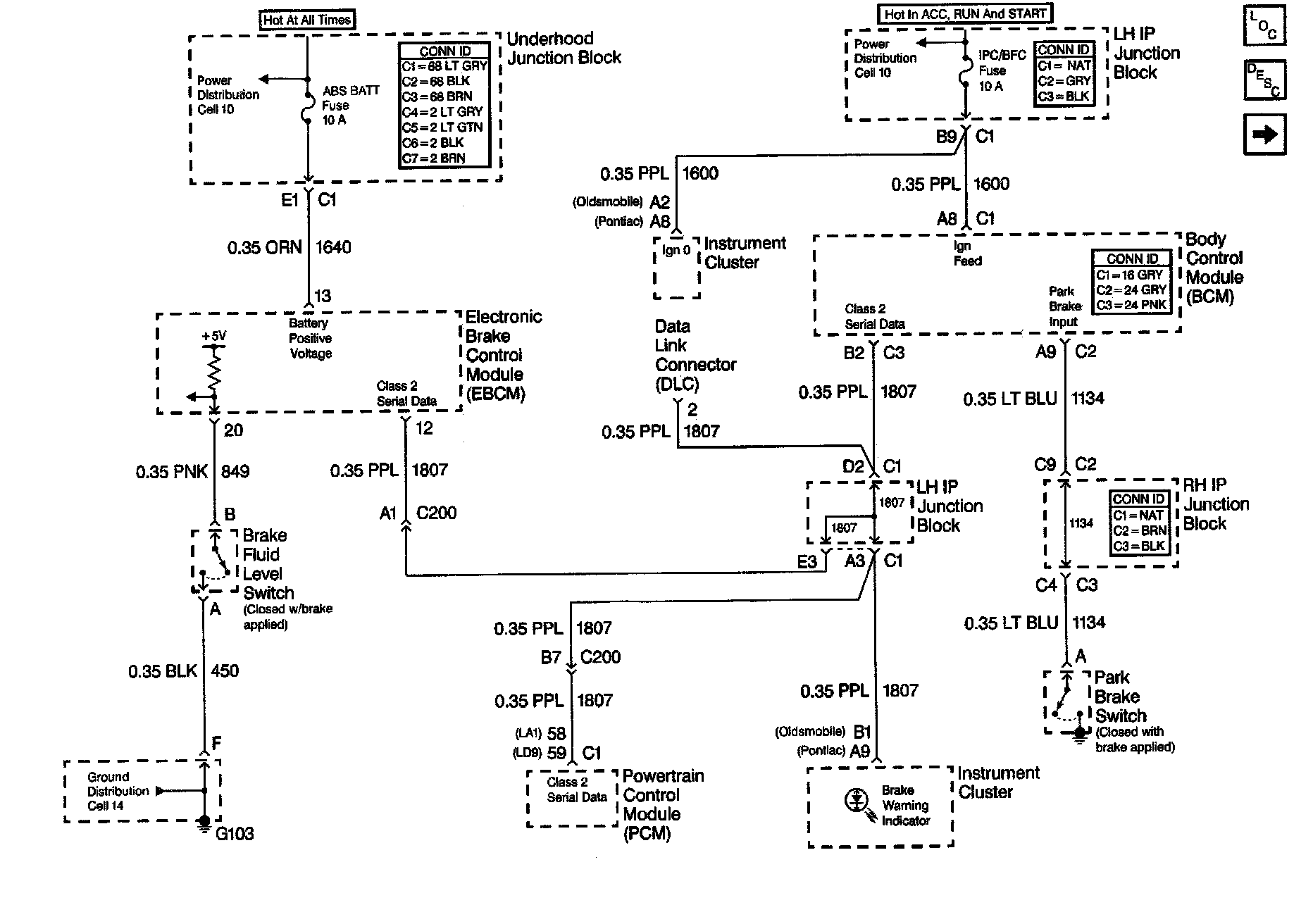

Brake Warning System Schematics: Brake Warning Schematic:
Brake Warning System Schematics: Brake Warning Schematic:
