Driver/Vehicle Information Display: Service and Repair

REMOVAL PROCEDURE




1. Remove the Instrument Panel (IP) insulators.

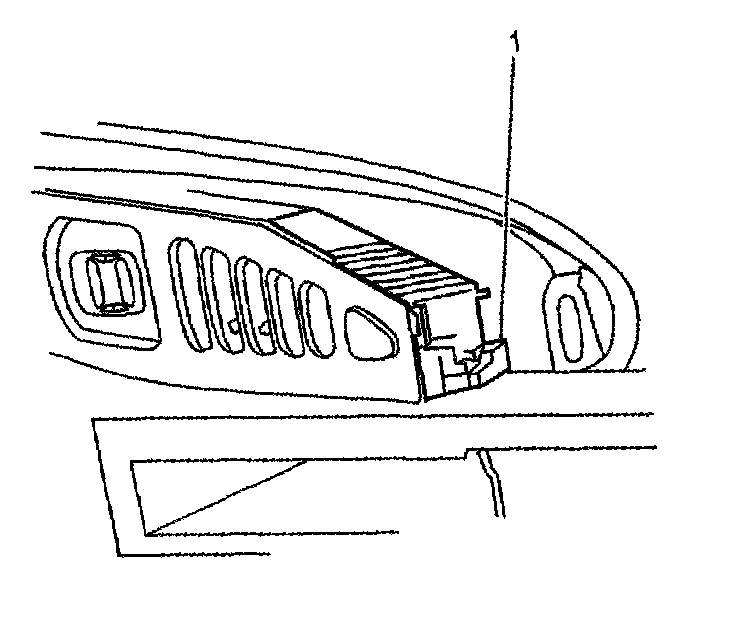

3. Unsnap the Driver Information Center (DIC) from the IP (1).




4. Disconnect the DIC electrical connections.
5. Remove the DIC from the IP.

INSTALLATION PROCEDURE




1. Connect the Driver Information Center (DIG) electrical connections.




2. Snap the DIG (1) into the Instrument Panel (IP).
3. Install the IP cluster trim panel.
4. Install the IP insulators.
