Home
>>
Pontiac
>>
2000
>>
Grand Prix V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Exterior Lights
>>
Hazard/Turn SIG LP Flasher,Turn SIG SW CHMSL and Stop/Turn LPS
Hazard/Turn SIG LP Flasher,Turn SIG SW CHMSL and Stop/Turn LPS

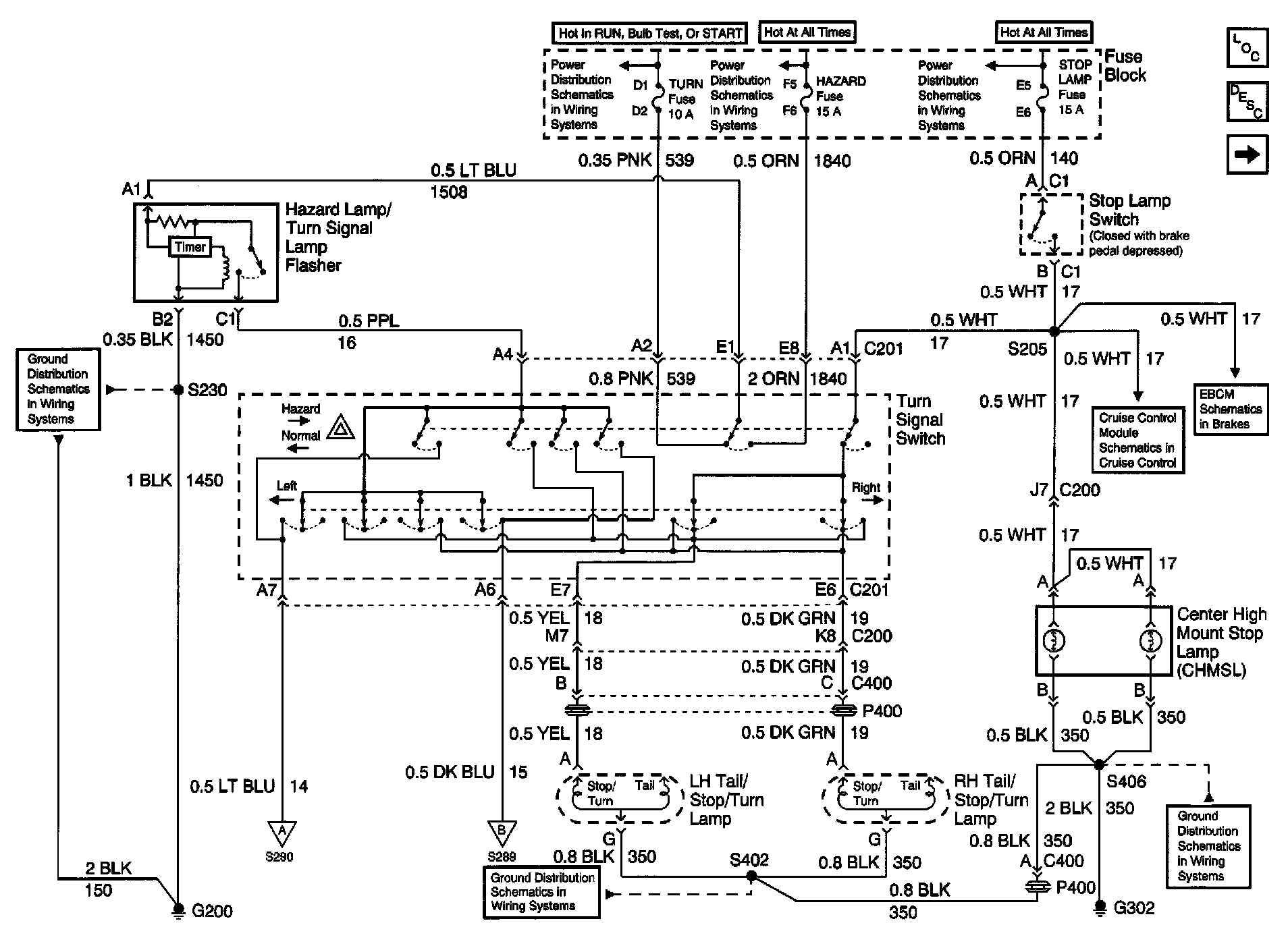

Exterior Lights Schematics: Hazard Lamp/Turn Signal Lamp Flasher, Turn Signal Switch CHMSL and Stop/Turn Lamps:
