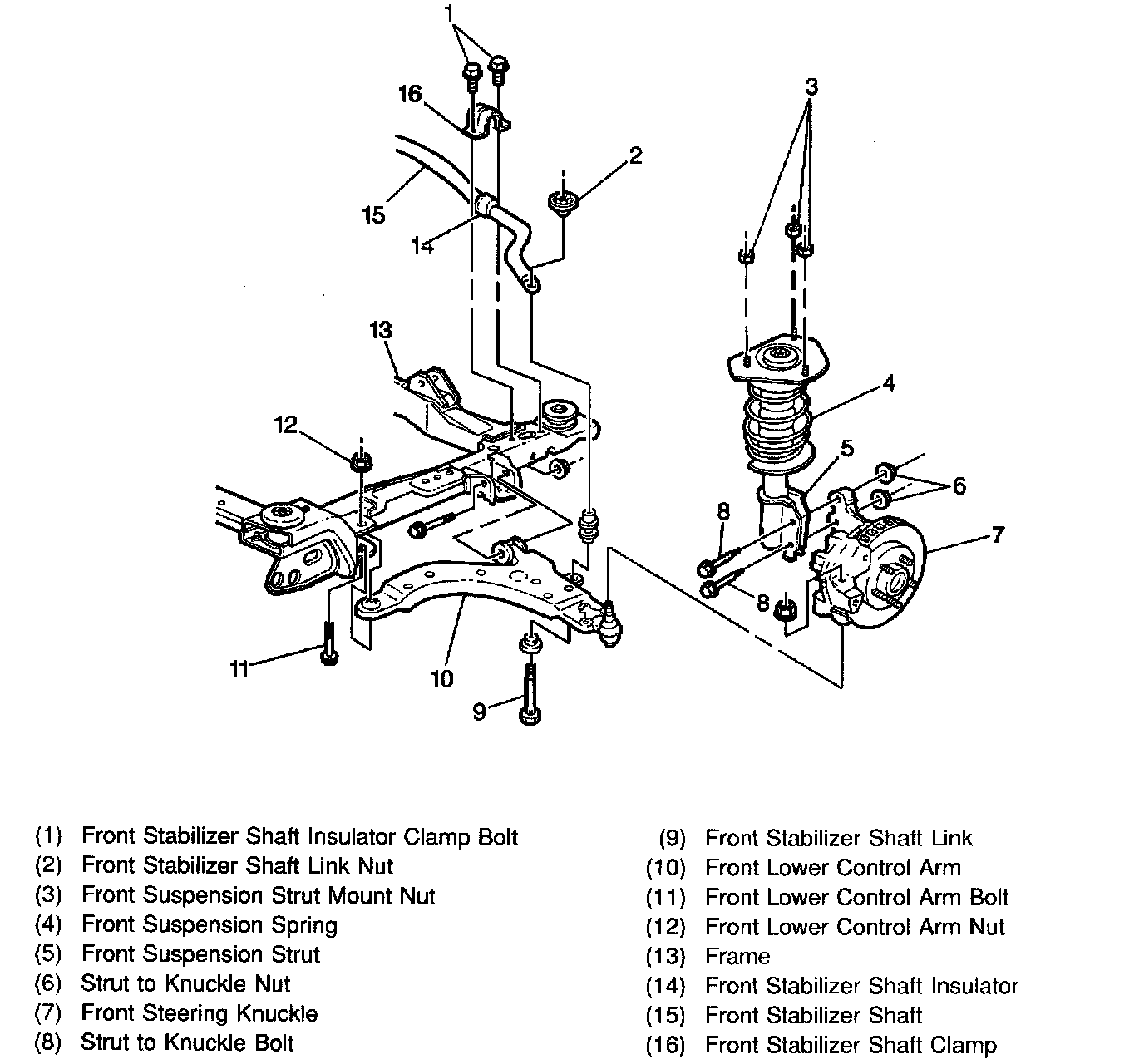

Front Suspension





Front Suspension

The replacement of any of the following items does not require the inspection or adjustment of the camber or the toe:
- The strut bumper
- The strut shield
- The upper spring seat
- The strut bearing
- The spring insulators
If you replace any of the following components, inspect and adjust the camber and the toe:
- The strut damper
- The knuckle
- The control arm
- The strut mount
- The spring
