Turn Signal & Multifunction Switch - Disassemble

1. Remove the upper and lower trim covers.
Steering Column Trim Covers - Disassemble

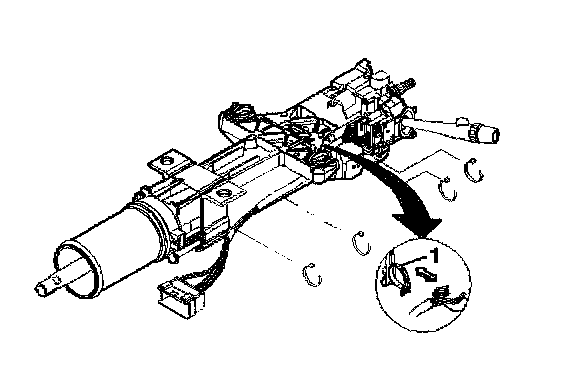

2. Remove the wire harness straps.
Remove the wire harness assembly from the wire restraint clip (1).
3. Disconnect the connectors of the turn signal and multifunction switch assembly.

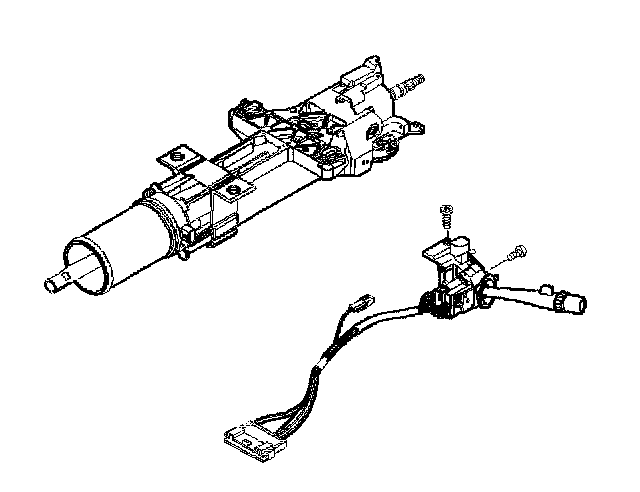

4. Remove 2 pan head tapping screws from the turn signal and multifunction switch assembly.
5. Remove the turn signal and multifunction switch assembly.
