Suspension Control ( Automatic - Electronic ): Service and Repair

Removal Procedure

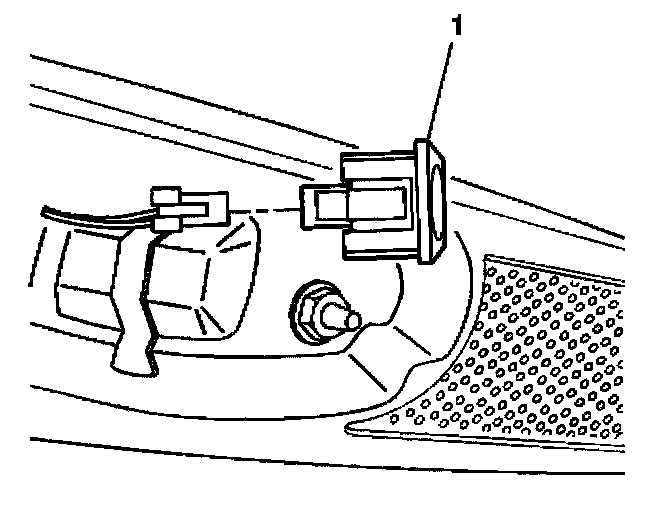

1. Remove the trunk compartment sill plate.
2. Disconnect the automatic level control air switch (1) electrical connector.
3. Remove the automatic level control air switch (1).

Installation Procedure





1. Install the automatic level control air switch (1) to the trunk compartment sill plate.
2. Connect the automatic level control air switch (1) electrical connector.
3. Install the trunk compartment sill plate.
