Fuel Gage Inaccurate or Inoperative

DIAGNOSTIC AIDS
^ Ensure that the fuel level is in the same range as the customer concern.
^ For intermittent diagnosis, refer to Testing for Intermittent and Poor Connections in Diagrams.
^ Refer to Fuel Level Specifications in order to verify the correct fuel level sender readings. The Fuel Level (%) parameter is available on the scan tool in the PCM EVAP data list.

TEST DESCRIPTION

Steps 1-5:

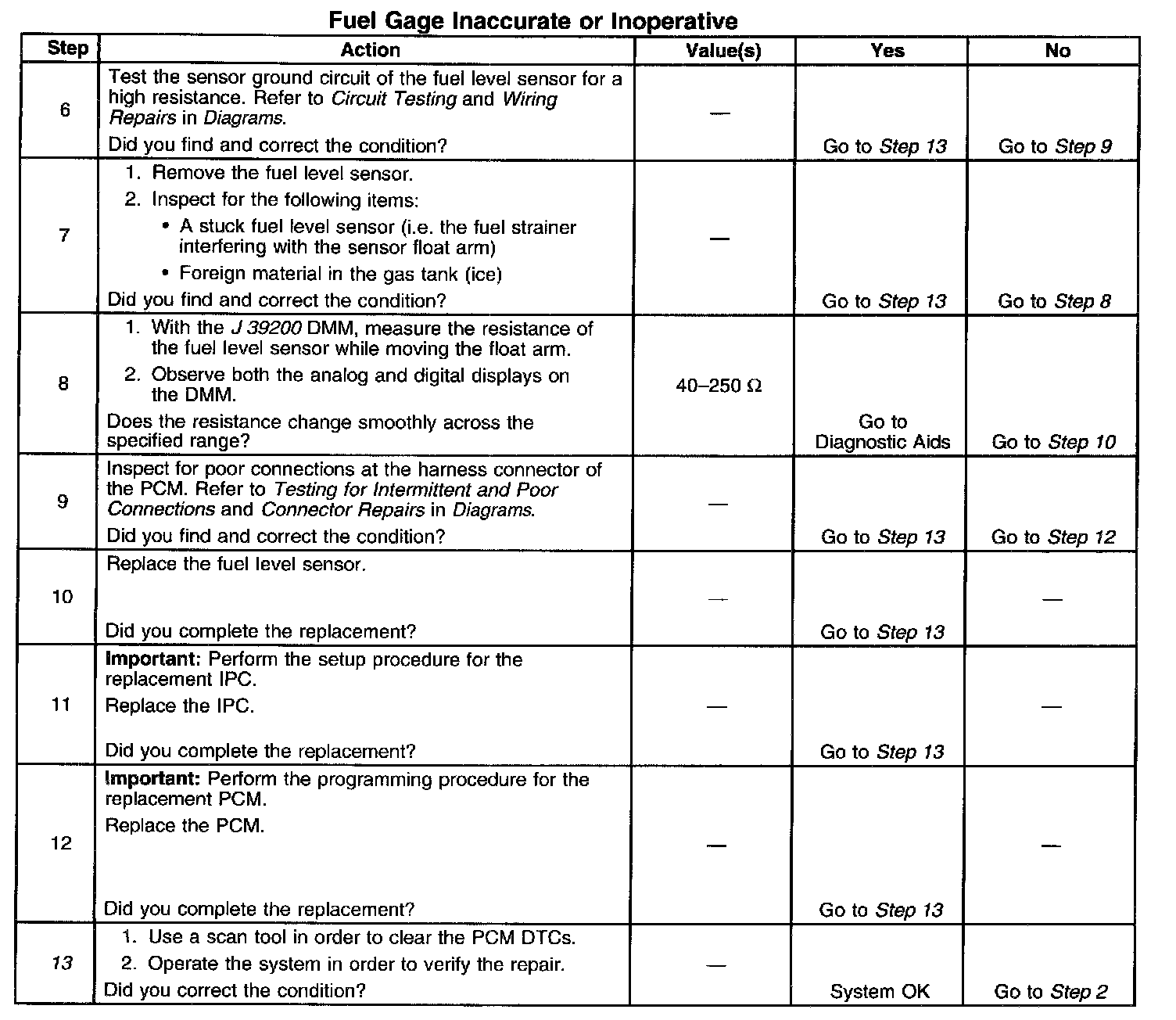

Steps 6-13:

The number(s) below refer to the step number(s) in the diagnostic table.
3. This step tests for a high resistance in the signal circuit and the sensor ground circuit of the fuel level sender.
13. DTCs will set in the PCM when you perform this diagnostic table.
