Enhanced Evaporative Emission (EVAP) Service Port

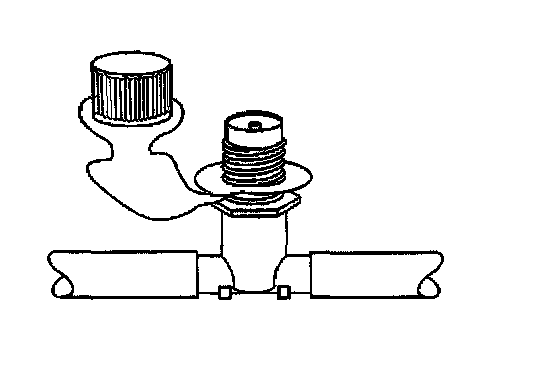

The enhanced EVAP service port is located in the EVAP pipe in the engine compartment near the purge solenoid. The service port is identified by a green cap. The port contains a schrader valve and a fitting in order to allow the connection of the J 41413 EVAP Pressure/Purge Diagnostic Station for diagnosis of the evaporative emission system.
