Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

Removal Procedure

1. Remove the left instrument panel insulator.
2. Unclip the BCM and position aside.
3. Remove the stoplamp switch.
4. Remove the cruise control release switch (if equipped).
5. Remove the wiring harness clips.

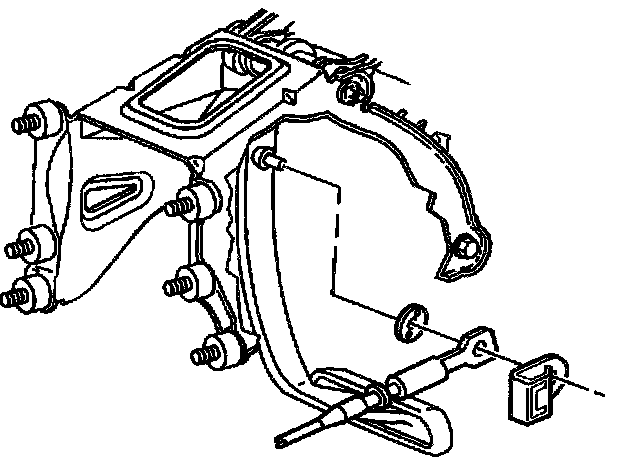

6. Remove the brake pedal pushrod retaining clip at the brake pedal.





7. Remove the brake pedal pushrod and washer.
8. Inspect all parts for evidence of wear. Repair or replace the worn parts as needed.

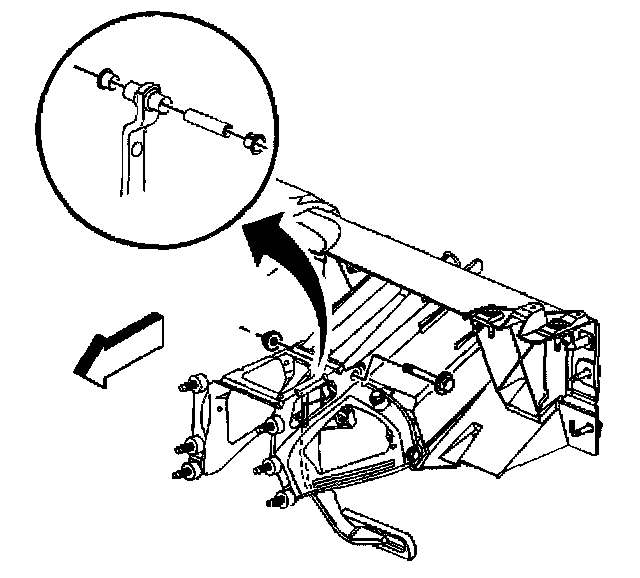

9. Remove the brake pedal nut and bolt.





10. Remove the brake pedal and bushings.

Installation Procedure





1. Install the brake pedal and bushings.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the brake pedal nut and bolt.
^ Tighten the brake pedal nut and bolt to 40 Nm (30 ft. lbs.).

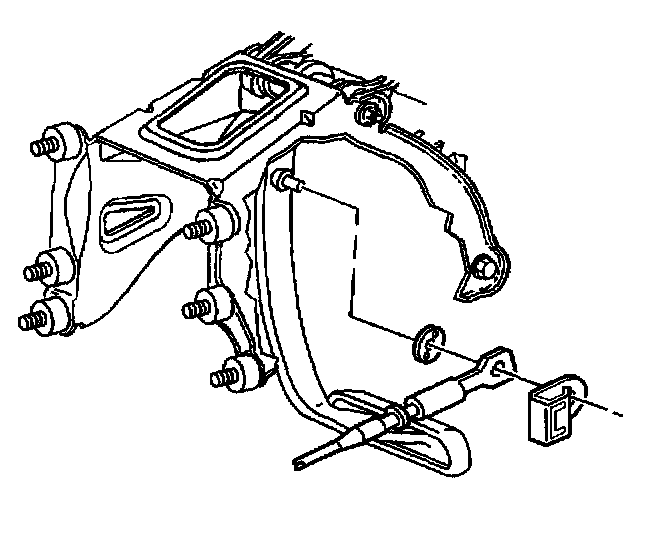

3. Install the brake pedal washer and pushrod.
4. Install the brake pedal pushrod retaining clip.
5. Install the wiring harness clips.
6. Install the cruise control release switch (if equipped).
7. Install the stoplamp switch.
8. Position and clip the BCM into place.
9. Install the left instrument panel insulator.
