Washer Solvent Container Replacement

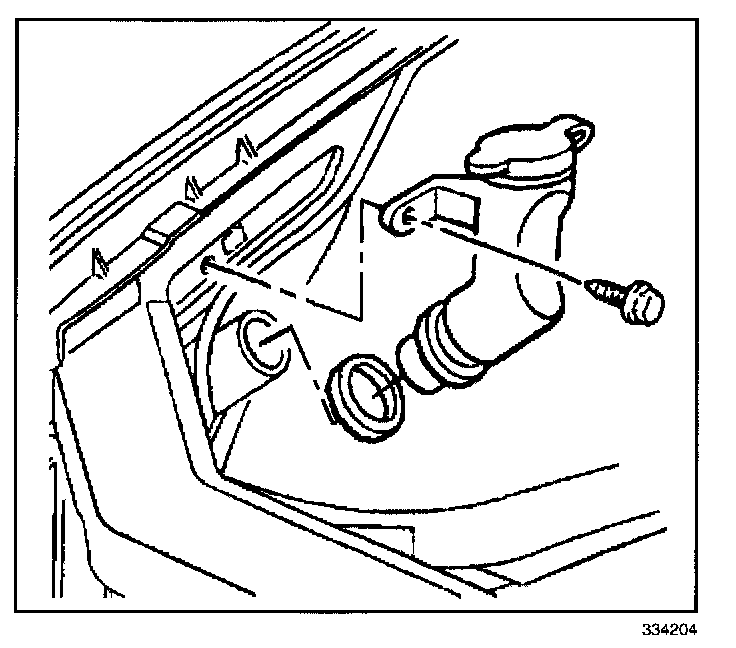

REMOVAL PROCEDURE1. Remove the screw from the tube assembly and the vehicle.
2. Remove the tube with the seal from the washer solvent container.
3. Remove the seal from the tube.
4. Remove the right headlamp assembly.
5. Remove the front washer solvent container screw.
6. Remove the front fender liner.

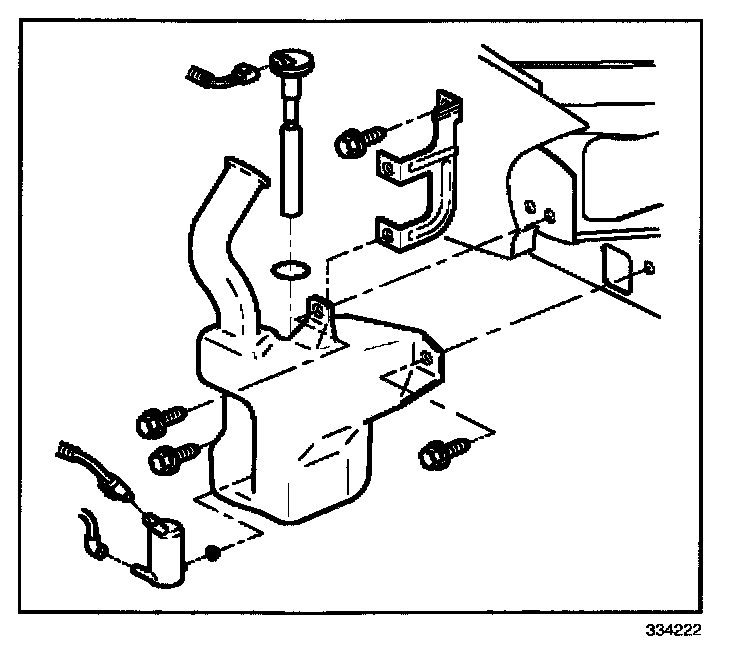

7. Disconnect the electrical connector and the hose from the washer pump.
8. Remove 2 screws and the washer solvent container from the vehicle (the washer solvent level sensor is still connected).
9. Disconnect the connector from the washer solvent level sensor.
10. Remove 2 screws and the bracket from the washer solvent container.
11. Remove the solvent level sensor and seal.
12. Remove the washer pump and seal.
INSTALLATION PROCEDURE
1. Install the washer pump and the seal.
2. Install the solvent level sensor and seal.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the bracket with 2 screws on the washer solvent container.
Tighten
Tighten the screws to 7 N.m (62 lb in).
4. Connect the electrical connector to the washer solvent level sensor.
5. Install the washer solvent container on the vehicle with 2 screws.
Tighten
Tighten the screws to 10 N.m (88 lb in).
6. Connect the electrical connector and the hose to the washer pump.
7. Install the front fender liner.
8. Install the front washer solvent container screw.
Tighten
Tighten the screw to 5 N.m (44 lb in).
9. Install the right headlamp assembly.
10. Install the seal onto the washer solvent container fill tube.
11. Install the fill tube on the washer solvent container.
12. Install the tube on the vehicle with the screw.
Tighten
Tighten the screw to 10 N.m (88 lb in).
