Sunfire L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>

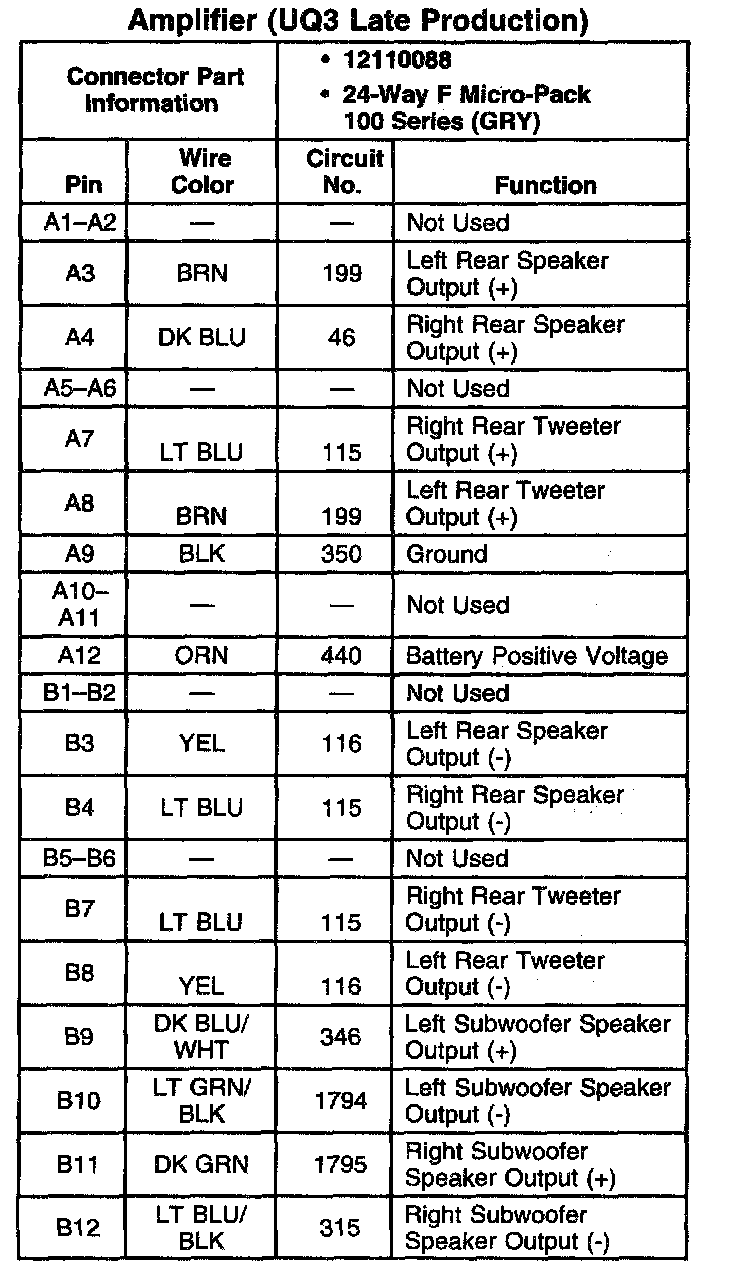

Amplifier (UQ3 Late Production)
Amplifier (UQ3 Late Production)
Amplifier (UQ3 Late Production):
