Component Tests and General Diagnostics

Park Brake System Diagnosis

Test 1 - 10

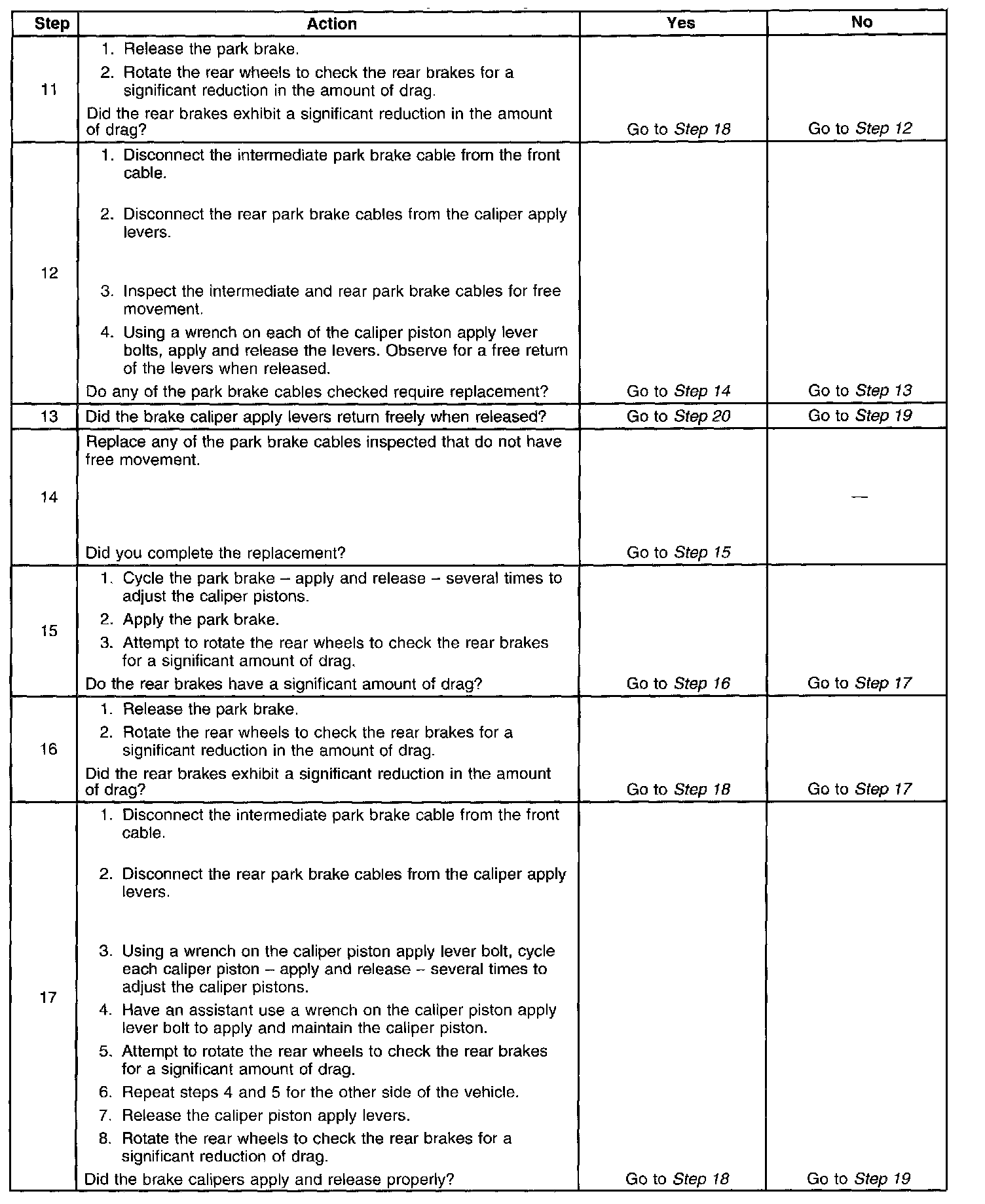

Test 11 - 17

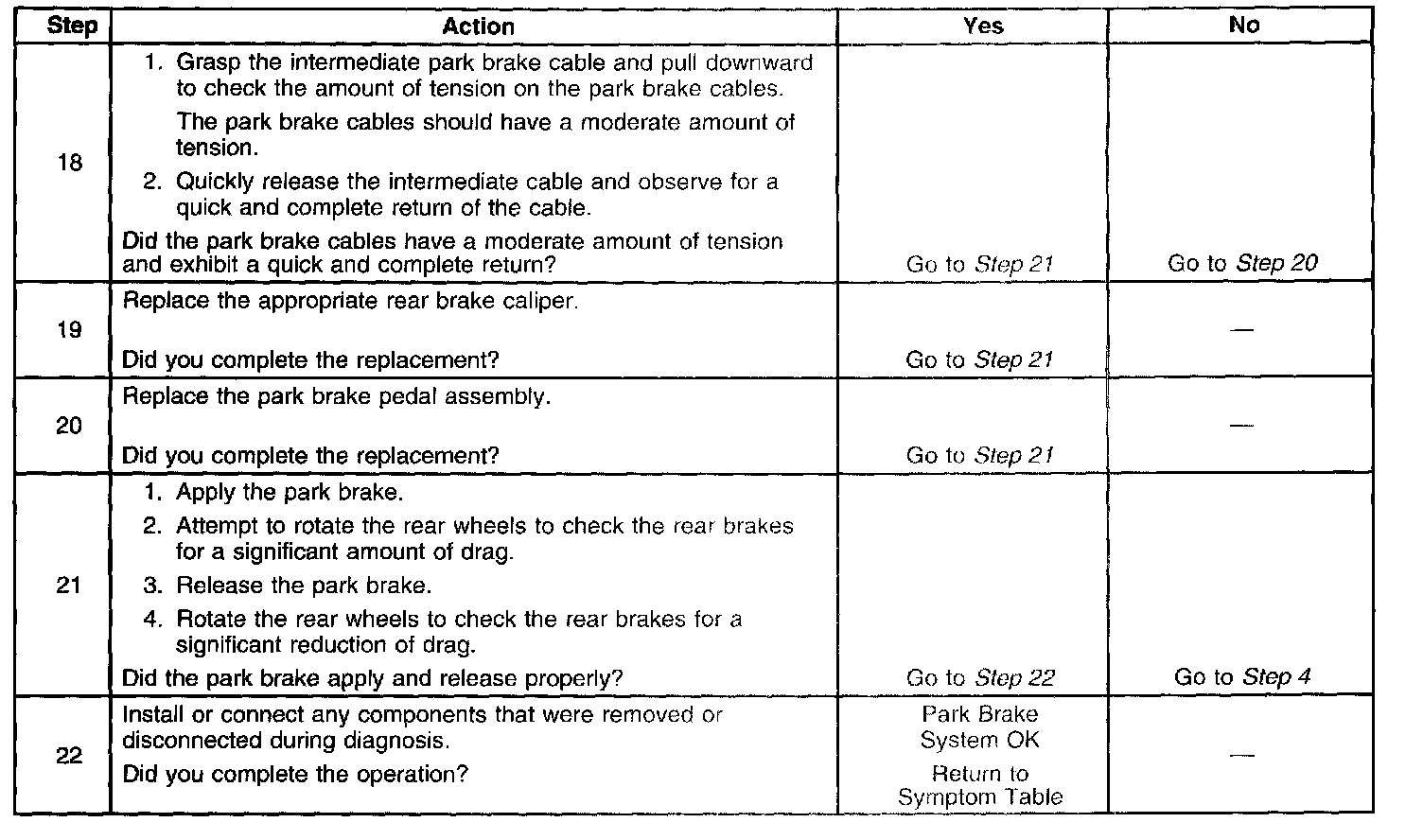

Test 18 - 22
