Cellular Phone
>>
Vehicle Communication Unit (VCU) - 2.6
Vehicle Communication Unit (VCU) - 2.6

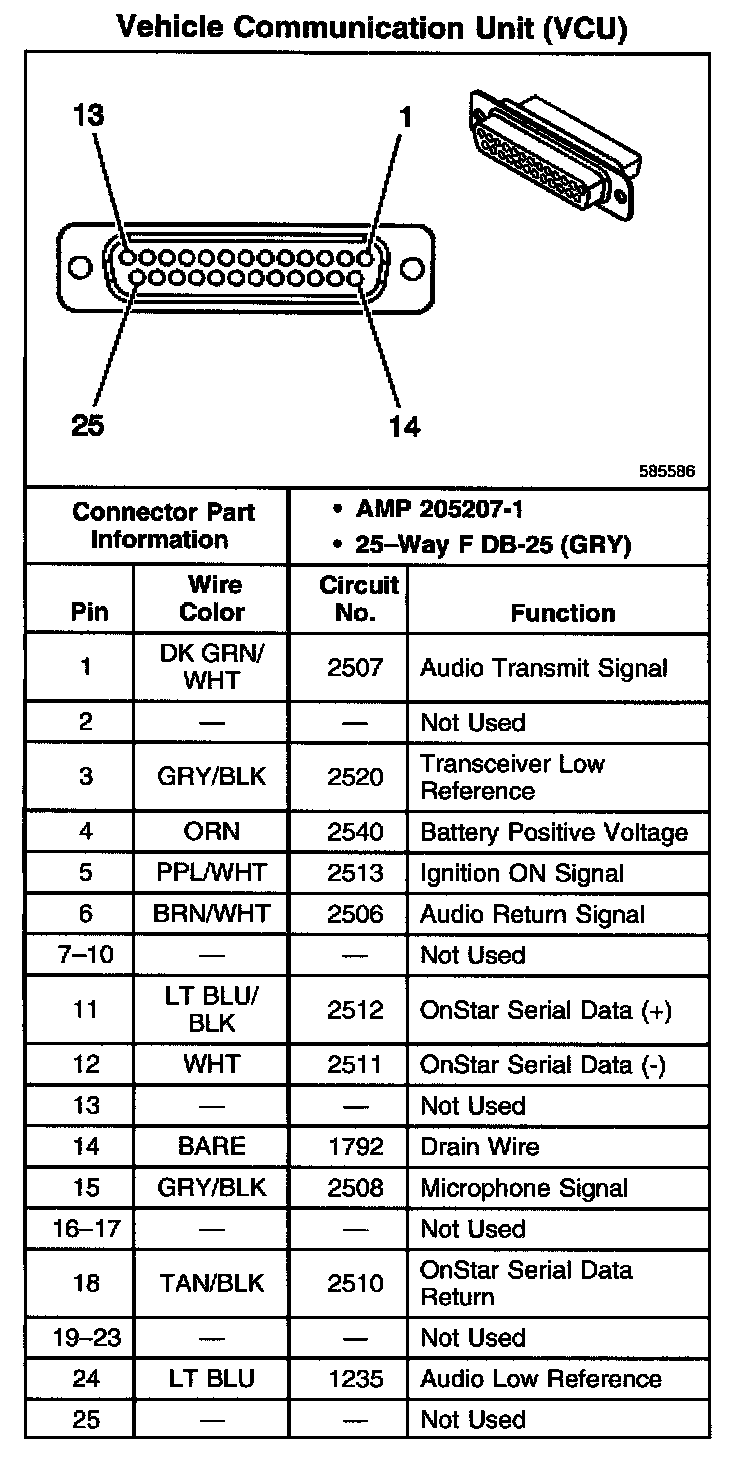

Vehicle Communication Unit (VCU):

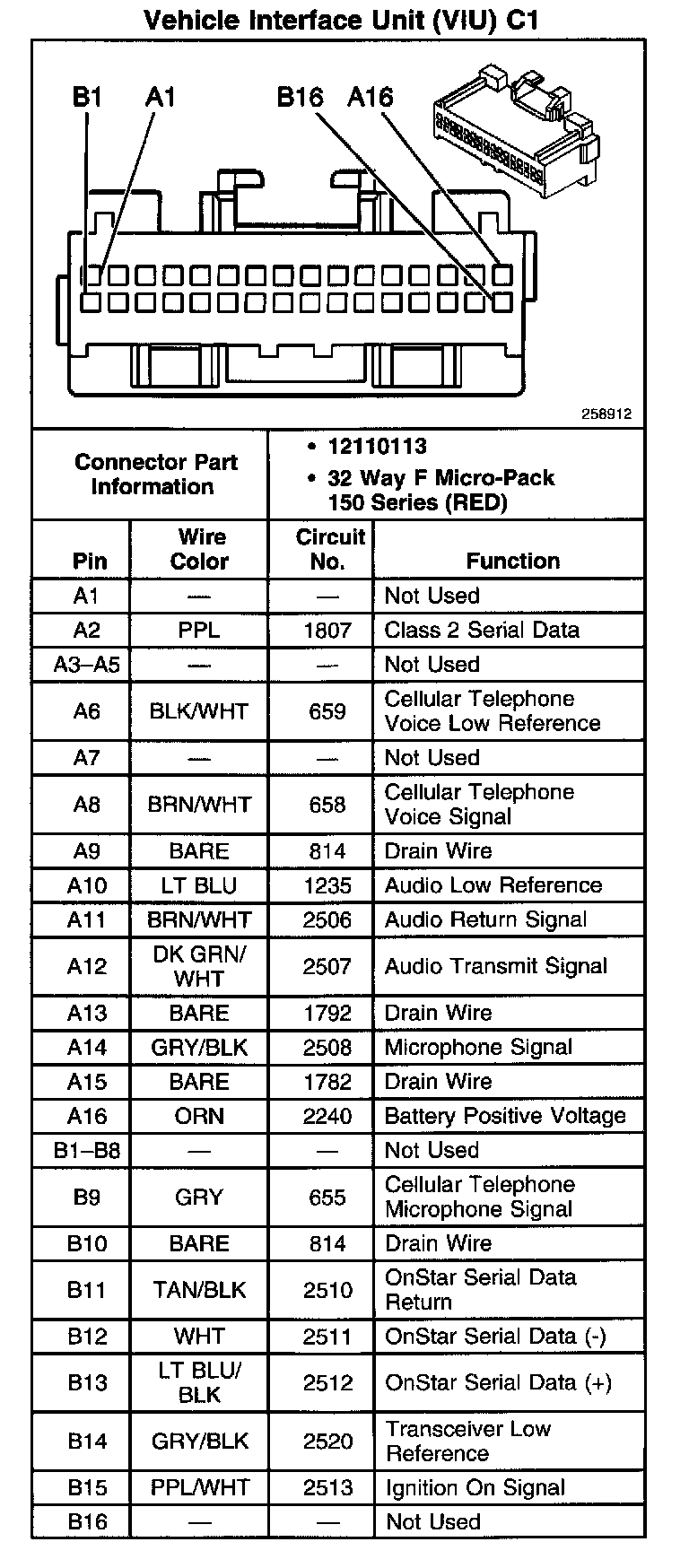

Vehicle Communication Unit (VIU) C1:

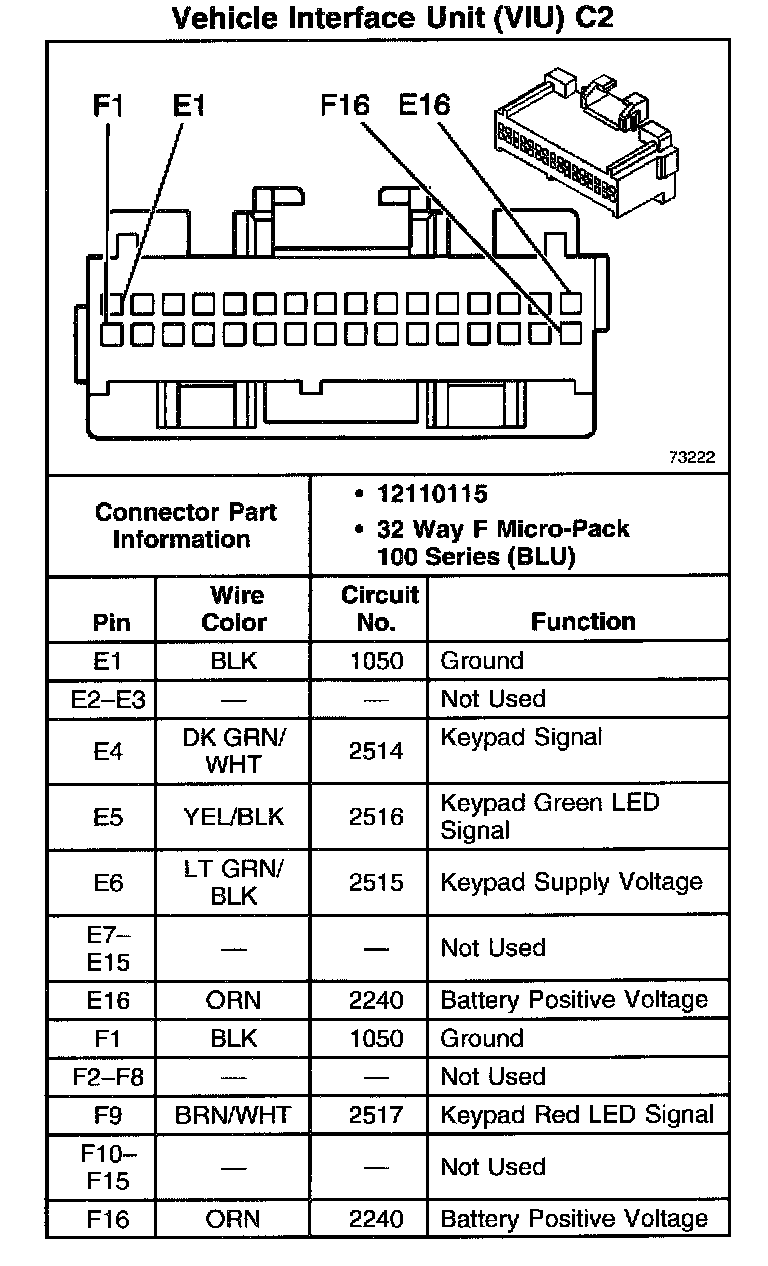

Vehicle Communication Unit (VIU) C2:
