ASM, Accelerator Control and Adjuster (V8 LS1 W/NW9)

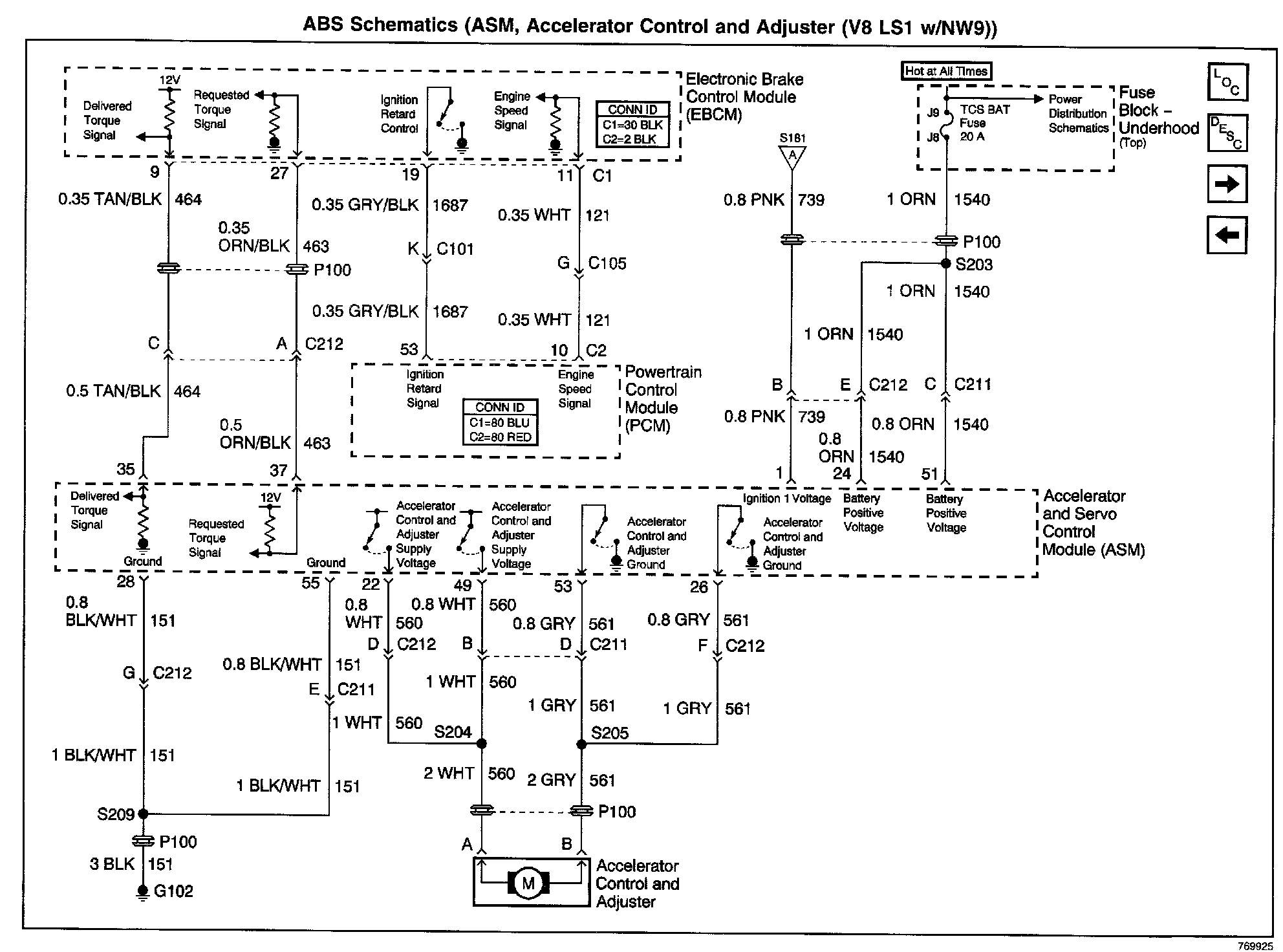

ABS Schematics: ASM, Accelerator Control And Adjuster (V8 LS1 W/NW9):

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
