Wiper Gear Box: Service and Repair
WIPER TRANSMISSION REPLACEMENTTOOLS REQUIRED
^ J 39232 Wiper Transmission Separator
^ J 39529 Wiper Transmission Installer
REMOVAL PROCEDURE
1. Remove the air inlet grille panel.
2. Disconnect the wiper motor electrical connector.

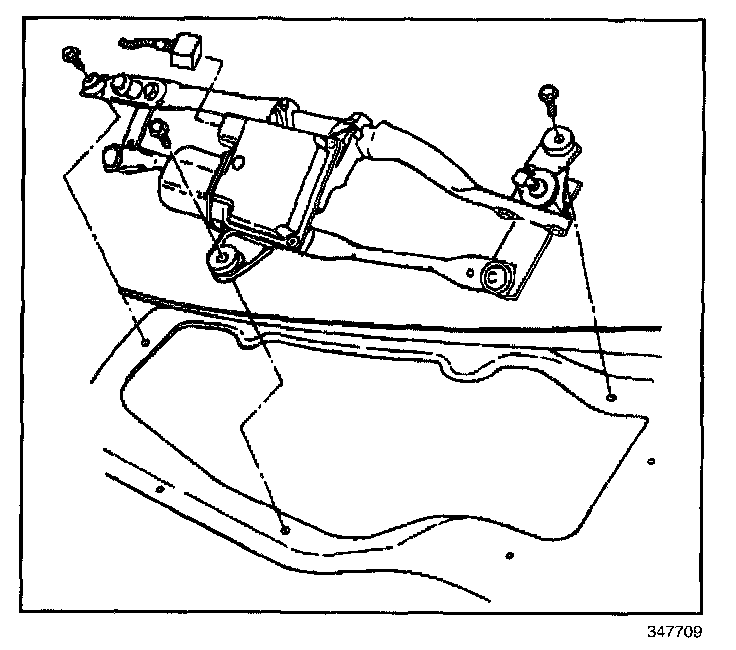

3. Remove the wiper drive system module screws.
4. Remove the wiper drive system module from the vehicle.

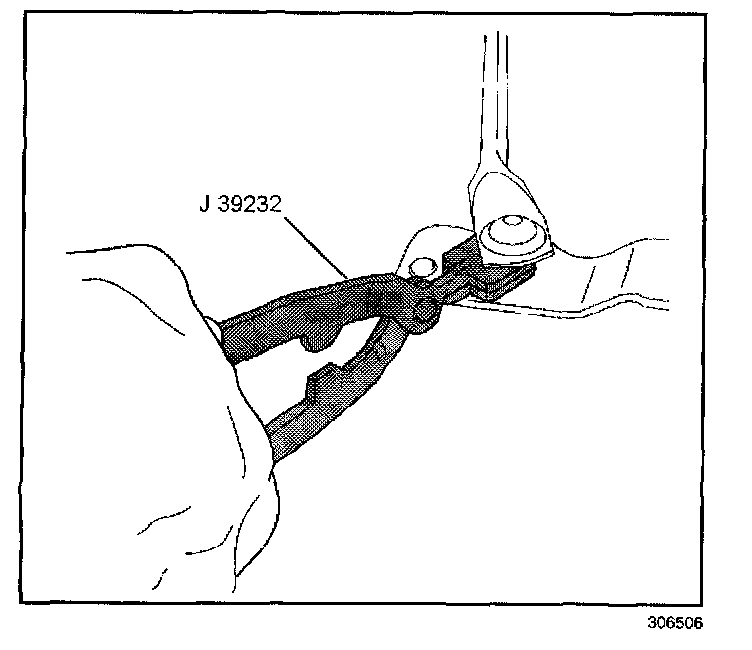

5. Using the J 39232, disconnect the wiper transmission from the wiper motor crank arm.

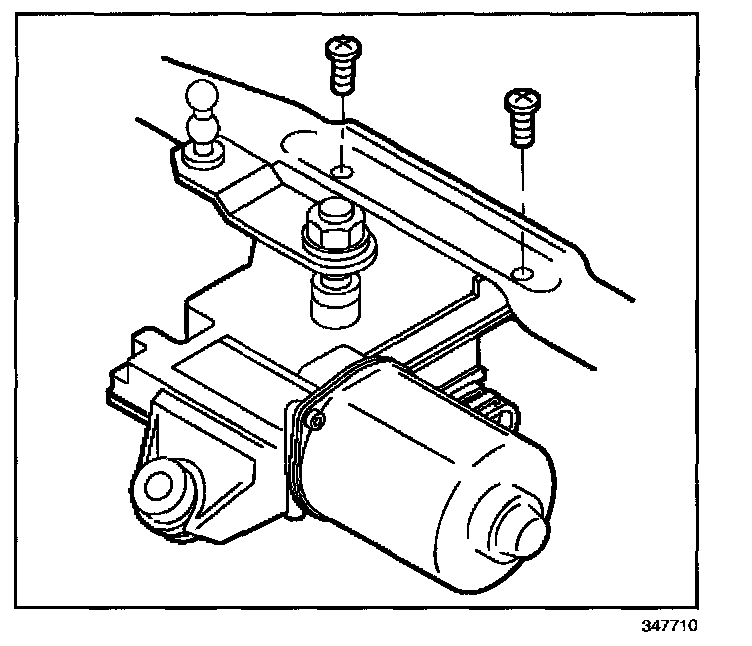

6. Remove the wiper motor screws.
7. Remove the wiper motor from the wiper transmission.
INSTALLATION PROCEDURE
1. Position the wiper motor to the wiper transmission.
NOTE: Refer to Fastener Notice in Service Precautions.

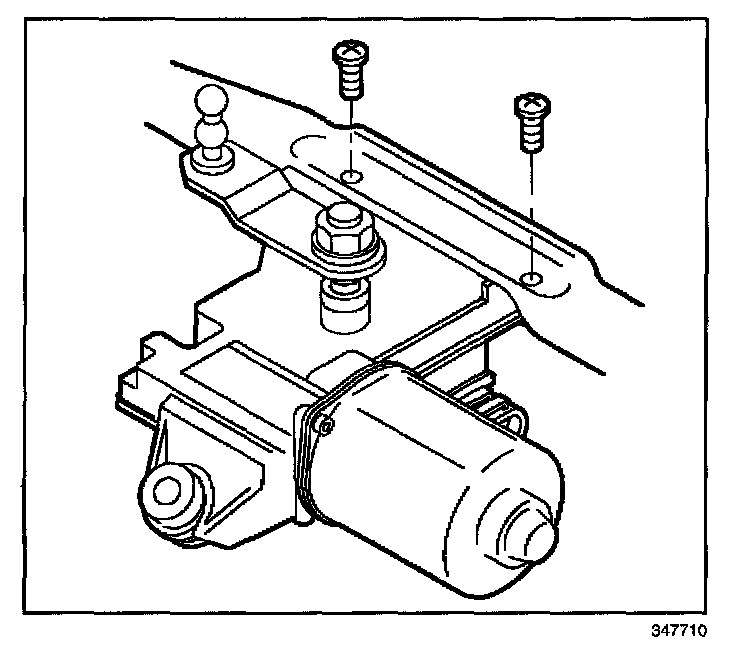

2. Install the wiper motor screws.
Tighten
Tighten the screws to 10 N.m (89 lb in).

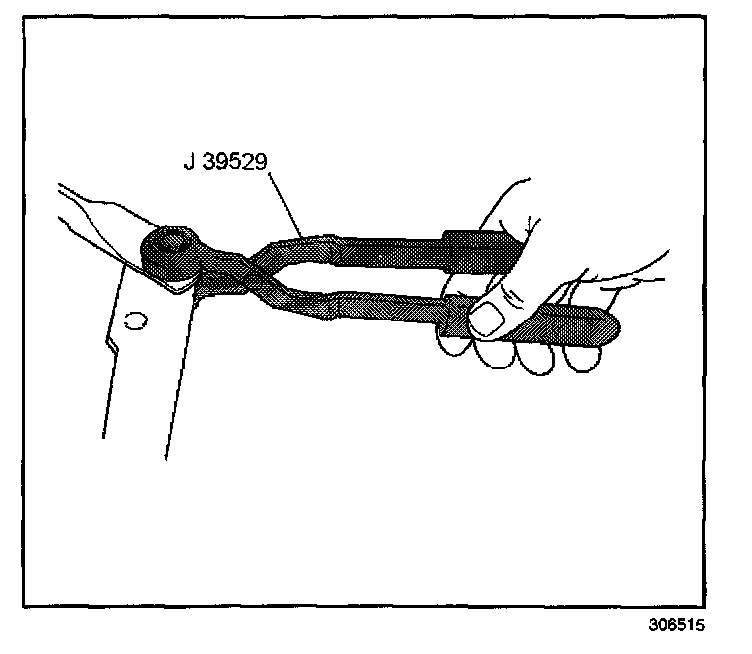

3. Using the J 39529, connect the wiper transmission to the wiper motor crank arm.
4. Position the wiper drive system module to the vehicle.
5. Install the wiper drive system module screws.
Tighten
Tighten the screws to 10 N.m (89 lb in).
6. Connect the wiper motor electrical connector.
7. Install the air inlet grille panel.
