Air Distribution Ducts Replacement - Auxiliary

REMOVAL PROCEDURE




1. Remove the floor carpet.

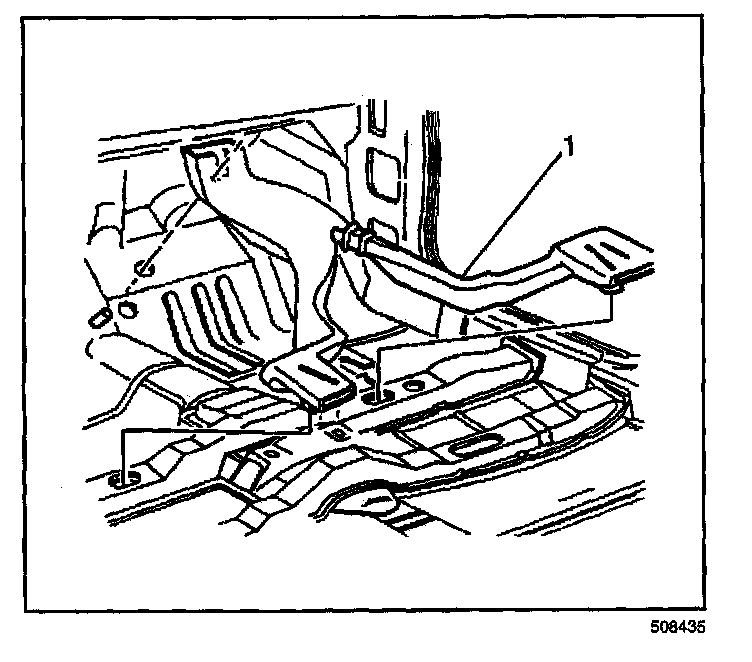

2. Release the rear floor air outlet duct (1) from the studs and the holes in the floor reinforcement.
3. Disconnect the lower heater duct from the heater core outlet cover.
4. Remove the lower heater duct.

INSTALLATION PROCEDURE




1. Install the lower heat duct.
2. Connect the lower heater duct to the heater core outlet cover.

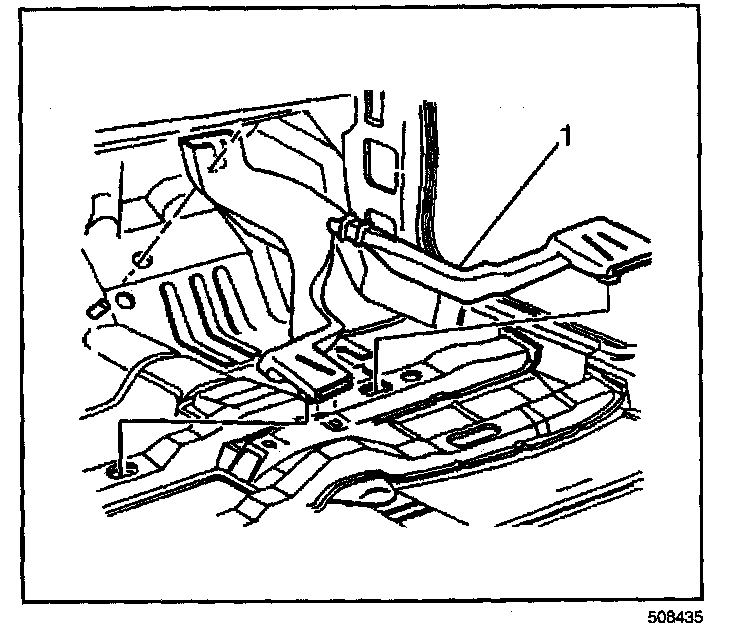

3. Position the rear floor air outlet duct (1) onto the studs and the holes in the floor reinforcement and press into place.
4. Install the floor carpet.
