Enabling

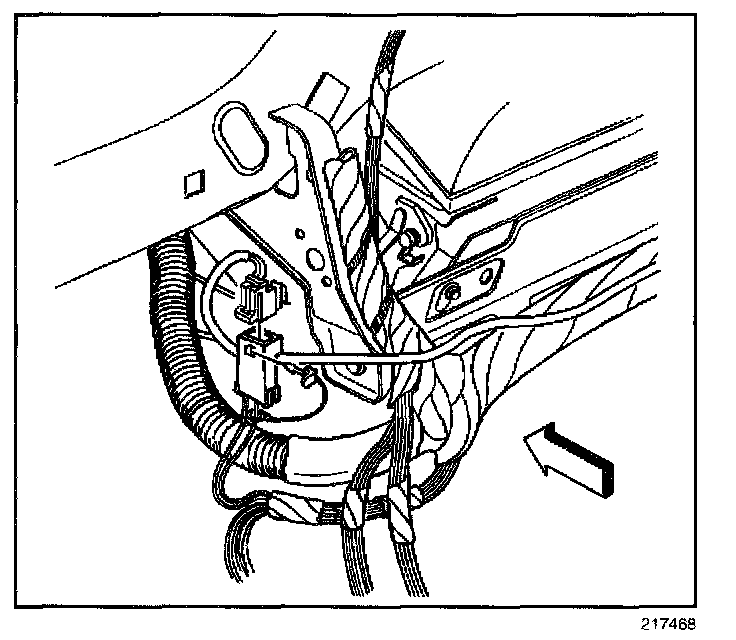

1. Connect the inflatable restraint IP module connector located to the right of the steering column.
2. Install the Connector Position Assurance (CPA) to the IP module connector.

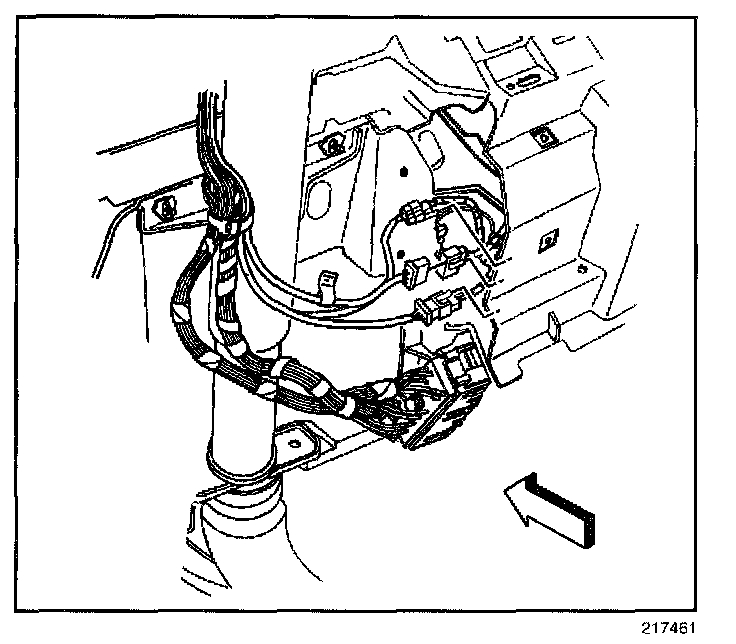

3. Connect the inflatable restraint steering wheel module coil connector located at the base of the steering column.
4. Install the CPA to the steering wheel module coil connector.
5. Install the LH insulator panel.

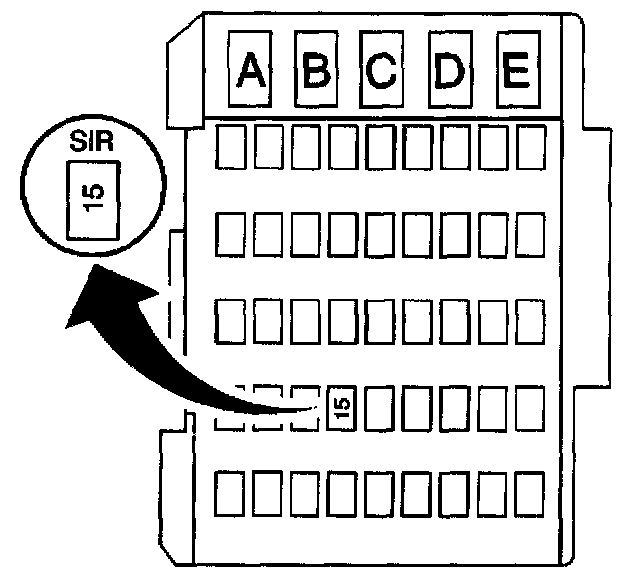

6. Install the SIR Fuse.
7. Install the IP fuse block cover.
8. Staying well away from all inflator modules, turn ON the ignition.
8.1. The AIR BAG indicator will flash seven times.
8.2. The AIR BAG indicator will then turn OFF.
9. Perform Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
