Knee Diverter: Service and Repair

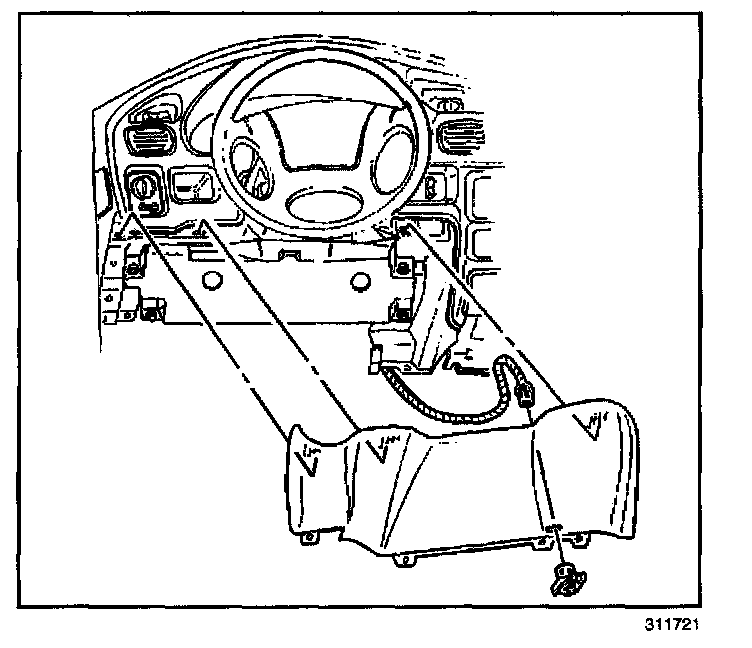

KNEE BOLSTER REPLACEMENTREMOVAL PROCEDURE
1. Remove the left instrument panel (IP) insulator.
2. Remove the steering column filler.
3. Remove the knee bolster bracket bolts at the IP.
4. Remove the knee bolster bracket bolts at the steering column support.
5. Remove the knee bolster from the IP.

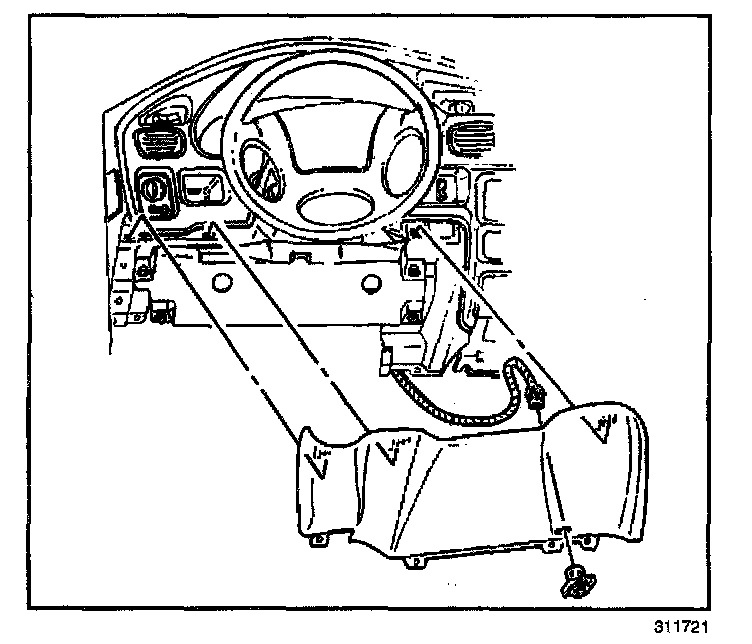

INSTALLATION PROCEDURE
1. Install the knee bolster bracket to the IP.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the knee bolster bracket bolts at the steering column support.
Tighten
Tighten the bolts to 10 N.m (89 lb in).
3. Install the knee bolster bracket bolts at the IP.
Tighten
Tighten the bolts to 2 N.m (18 lb in)
4. Install the steering column filler.
5. Install the left IP insulator.
