A/T Transmission Inline Harness Connector End Views

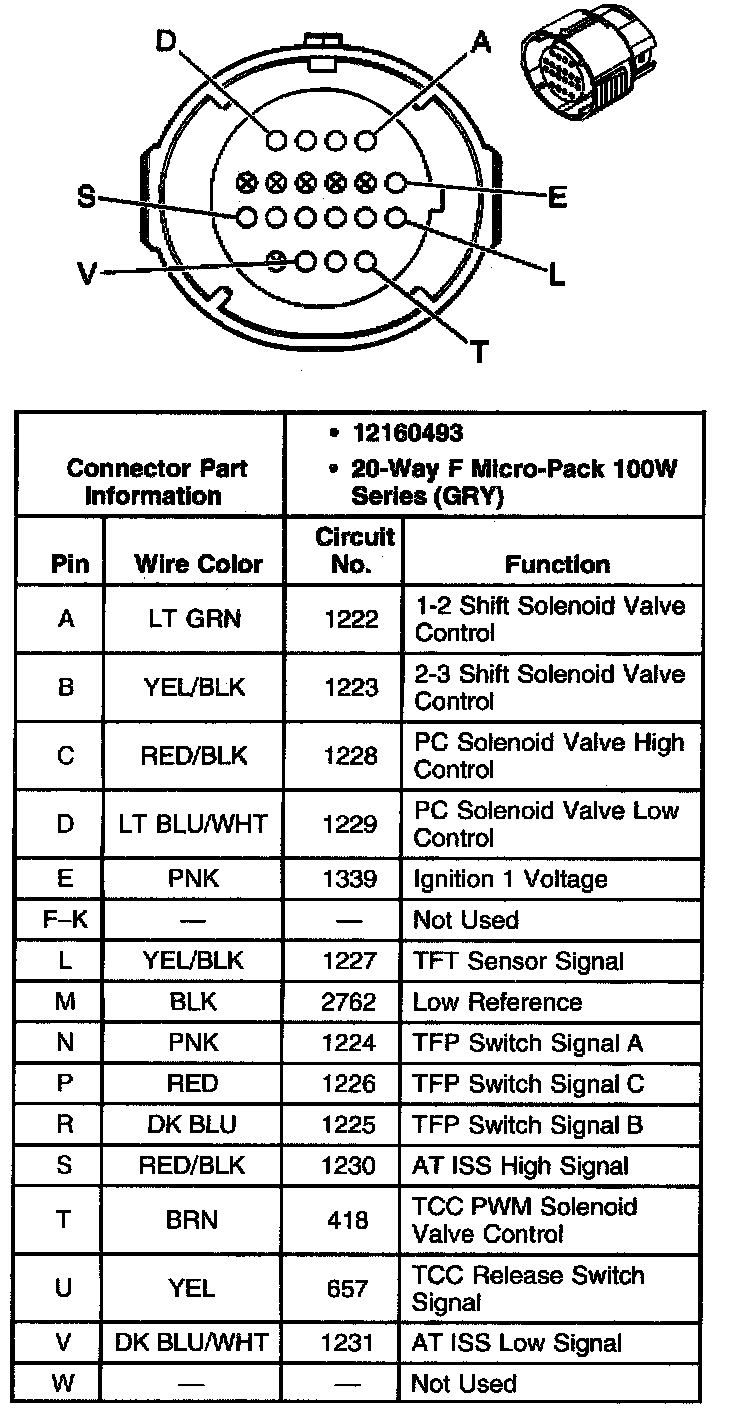

A/T Inline Harness 20-Way Connector, Engine Side:

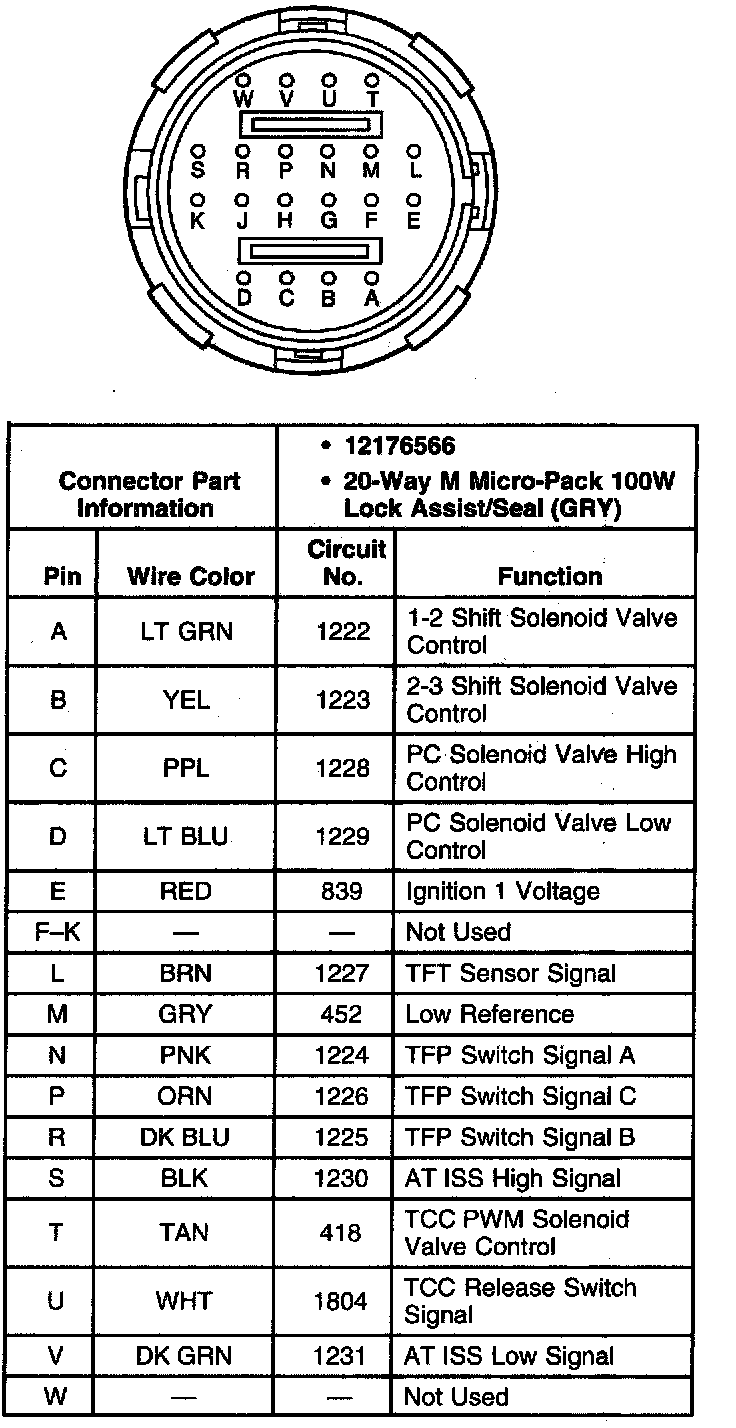

A/T Inline Harness 20-Way Connector, Transmission Side:
