Driver/Vehicle Information Display: Service and Repair
DRIVER INFORMATION CENTER (DIC) BULB REPLACEMENTREMOVAL PROCEDURE
1. Remove the driver information center (DIC).

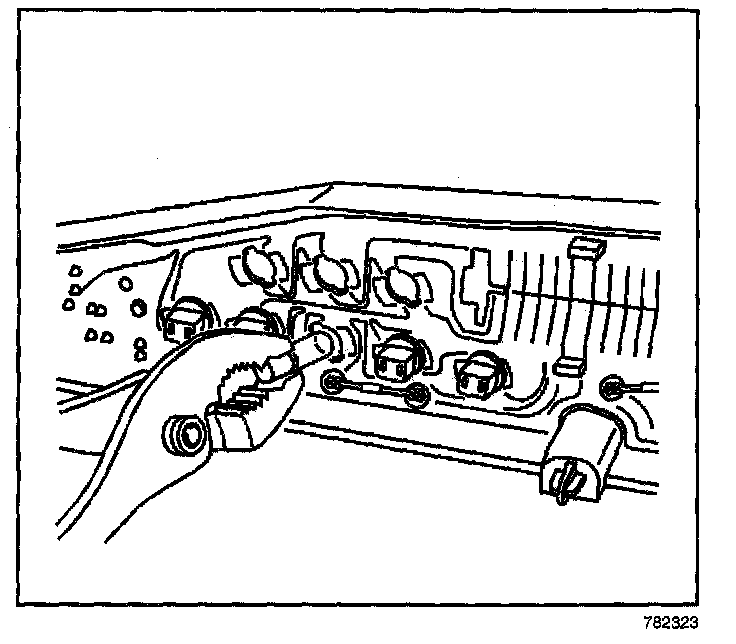

2. Remove the illumination lamp:
^ Use pliers to rotate the red colored illumination lamp counterclockwise.
^ Remove the illumination lamp.

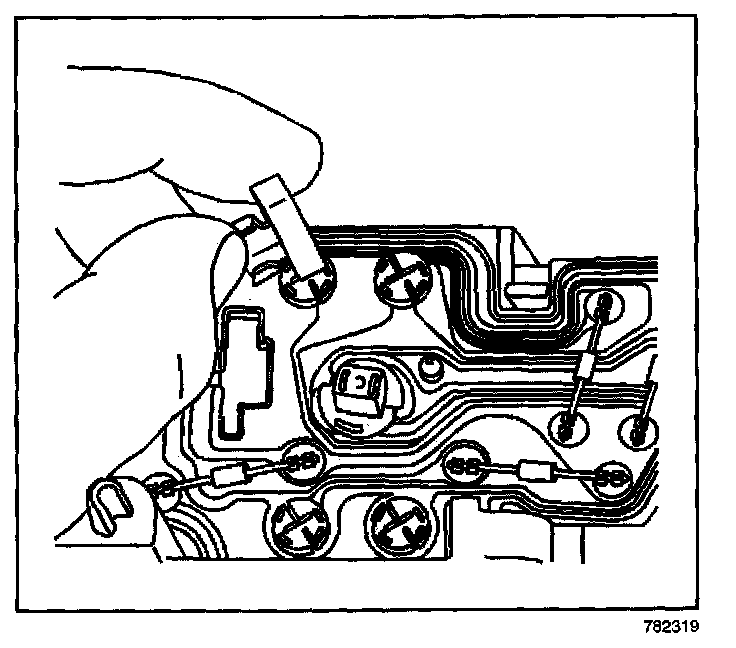

3. Remove the door ajar lamp:
^ Use a flat-bladed tool to rotate the black colored door ajar lamp counterclockwise.
^ Remove the door ajar lamp.
4. Remove the Trac Off, Low Trac, Trunk Ajar, Low Washer, or Chg Oil Soon lamp:
^ Use pliers to rotate the blue colored lamp counterclockwise.
^ Remove the lamp.
INSTALLATION PROCEDURE
1. Install the Trac Off, Low Trac, Trunk Ajar, Low Washer, or Chg Oil Soon lamp:
^ Place the blue colored lamp into the opening in the driver information center (DIC).
^ Use pliers to rotate the lamp clockwise.
2. Install the door ajar lamp:
^ Place the black door ajar lamp into the opening in the DIC.
^ Use a flat-bladed tool to rotate the door ajar lamp clockwise.
3. Install the illumination lamp:
^ Place the red colored illumination lamp into the opening in the DIC.
^ Use pliers to rotate the illumination lamp clockwise.
4. Install the DIC.
